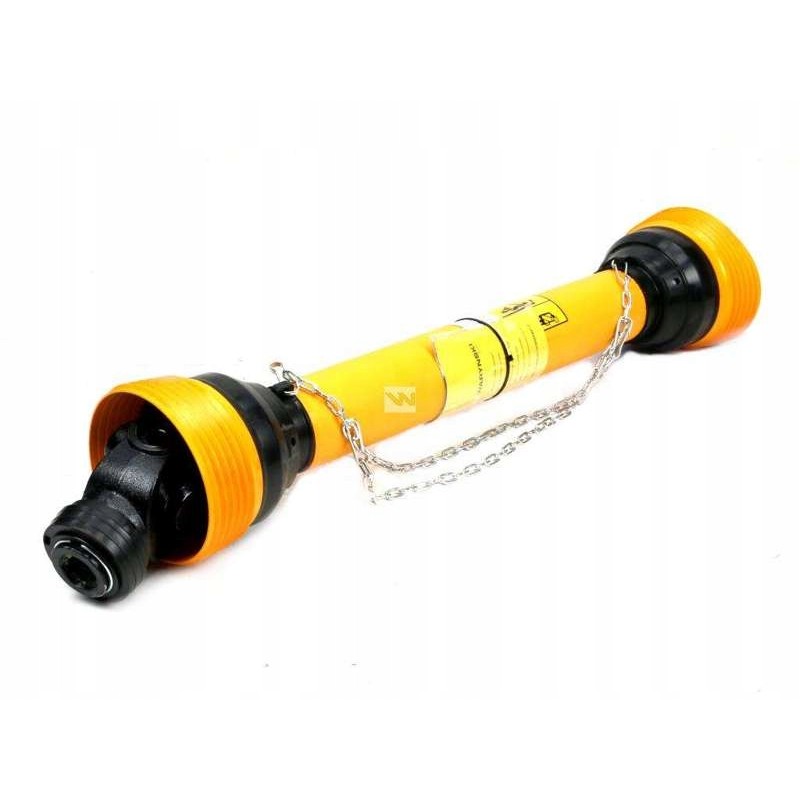

PTO shaft 760 1150mm 830nm ce 2020 series 6r warynski

Articulated-telescopic shaft 760-1150mm 830Nm CE 2020 series 6R WARYŃSKI Articulated-telescopic shaft 760-1150mm 830Nm CE 2020 series 6R WARYŃSKI Shaft made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Producer: Waryński Original< p>

Product code: 11034870

Cross height: 91.4 mm

Bearing diameter: 30.2 mm

Outer tube thickness: 54 mm / 4 mm

Inner tube thickness: 45 mm / 5.5 mm

Nominal power: 830 Nm

Maximum length: 1150 mm

Minimum length: 760 mm

Type of telescopic connector: Triangular tube

Mounting to the machine: 1 3/8' Z6

Mounting to the tractor: 1 3/8' Z6
