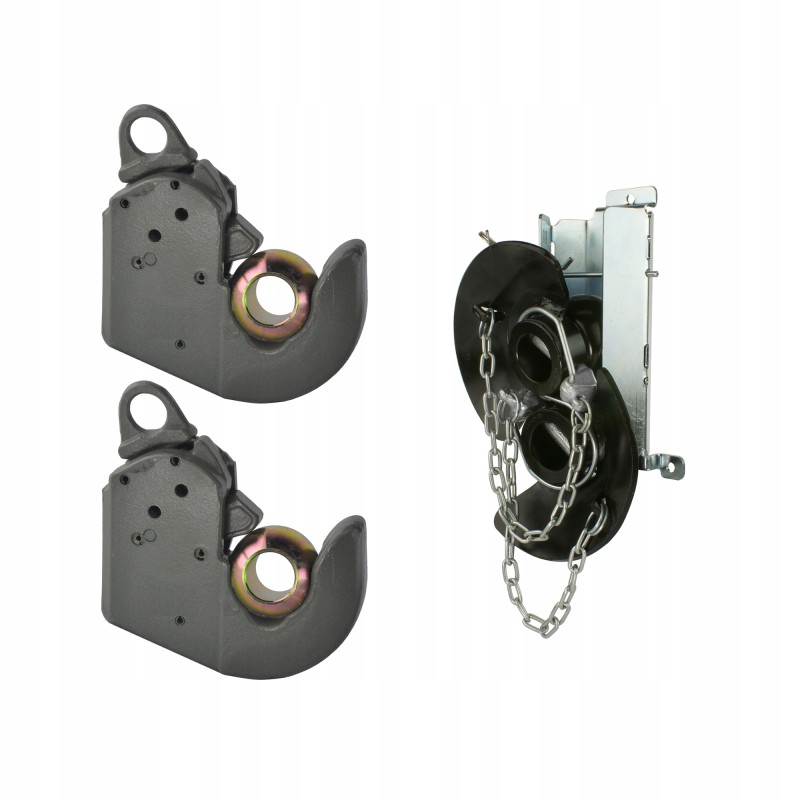

Cat3 hooks, magazine, ZK 64x37W hydrolider bullets

KIT FOR THE PRODUCTION OF LOWER TRANDS: TWO WELDING HOOKS CATEGORY 3

TWO BALLS 64x28 WITHOUT FLANGE

TWO BALLS 64X37 WITH FLANGE AND PROTECTIVE COATING

MAGAZINE FOR STORING BALLS< p>

Production:

Original product of the Hydrolider brand, symbol: 2.00.00.043

Application:

Weldable hooks, used in the production of various types of tendons lower or side. Preferred for the production of medium tie rods with a second category mounting system, used in URSUS C-385, ZETOR 1224 tractors and other derivatives with a power of up to 120 HP.

The magazine allows you to keep the balls in a safe and designated place on the tractor, machine or wall in a garage or machinery park.

Balls with a guide collar allow you to quickly connect and disconnect machines from the tractor. The collars make it easier for the driver to connect the machine by guiding the hooks to the balls. Used in the CBM lower link hook mounting system of category 3/3.

The electrochemical coating provides 6 times greater protection than a standard galvanic coating. Particularly recommended when working in difficult atmospheric and chemical conditions related to fertilization, cultivation and plant protection, e.g. in seeders, sprayers, barrel tankers and others.

Installation:

Example photo of the mounted magazine with rear of the tractor on the inner part of the fender:

REINFORCED CATEGORY III HOOKS:

Fits balls with an outer diameter: 64mm

Factory equipped with balls without a collar

Ball hole diameter for pin: 28mm

Ball material: galvanized steel

Hook material: high-quality weldable steel

MAGAZINE:

Bracket material: 2mm thick galvanized sheet

Total height: 192mm

Total width: 91mm

Total thickness: 63mm

Maximum number of stored balls: 2 pieces

Maximum diameter of stored balls: 64mm

BALLS WITH COLLAR AND ELECTROCHEMICAL COATING:

Category: 3/3

Material: Material 16 Mn Cr 5 (manganese-chrome steel, hardened)

Additionally: protective electrochemical coating

Guidance flange: YES

Inner diameter : 37mm

Outer diameter: 64mm

Pin diameter: 12mm
