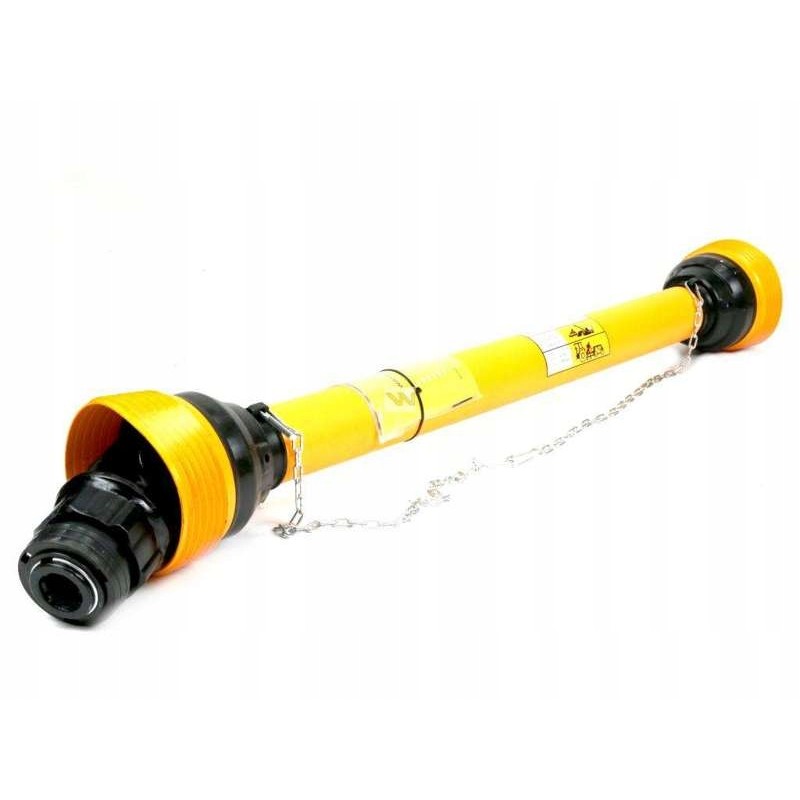

PTO shaft 860 1250mm 620nm clutch series 5r Warynsk

PTO shaft 860-1250mm 620Nm one-way clutch 60250 CE 2020 series 5R WARYŃSKI Shaft made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Producer: Waryński Original< p>

Product code: W5B110860

Cross height: 79.4 mm

Bearing diameter: 30.2 mm

Outer tube thickness: 51 .5 mm / 3 mm

Inner tube thickness: 45 mm / 3.8 mm

Clutch: One-way clutch

Nominal power: 620 Nm

Maximum length: 1250 mm

Minimum length: 860 mm

Type of telescopic connector: Triangular tube

Mounting to the machine: 1 3/8' Z6

Tractor mounting: 1 3/8' Z6
