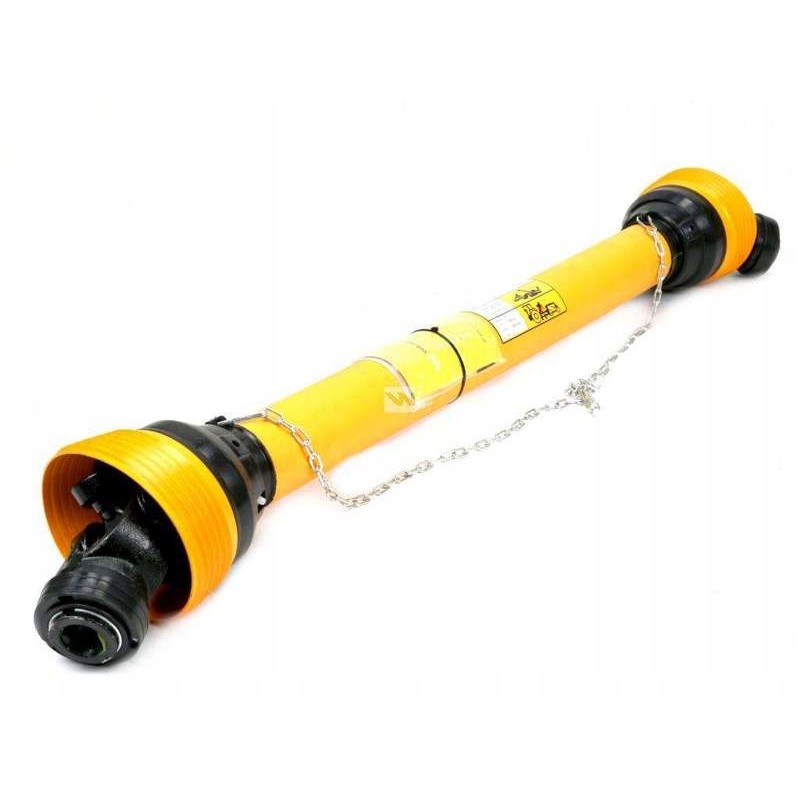

PTO shaft 1010-1550mm 830Nm CE 2020 series 6R WARYŃSKI The shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Producer: Waryński Original< p>

Product code: W6B1B11010

Cross height: 91.4 mm

Bearing diameter: 30.2 mm

Outer tube thickness: 54 mm / 4 mm

Inner tube thickness: 45 mm / 5.5 mm

Clutch breaking power: 2200 Nm

Clutch: Clutch with pin

Nominal power: 830 Nm

Maximum length: 1550 mm

Minimum length: 1010 mm

Type of telescopic connector: Triangular pipe

Mounting to the machine: 1 3/8' Z6

Mounting to the tractor: 1 3/8' Z6
