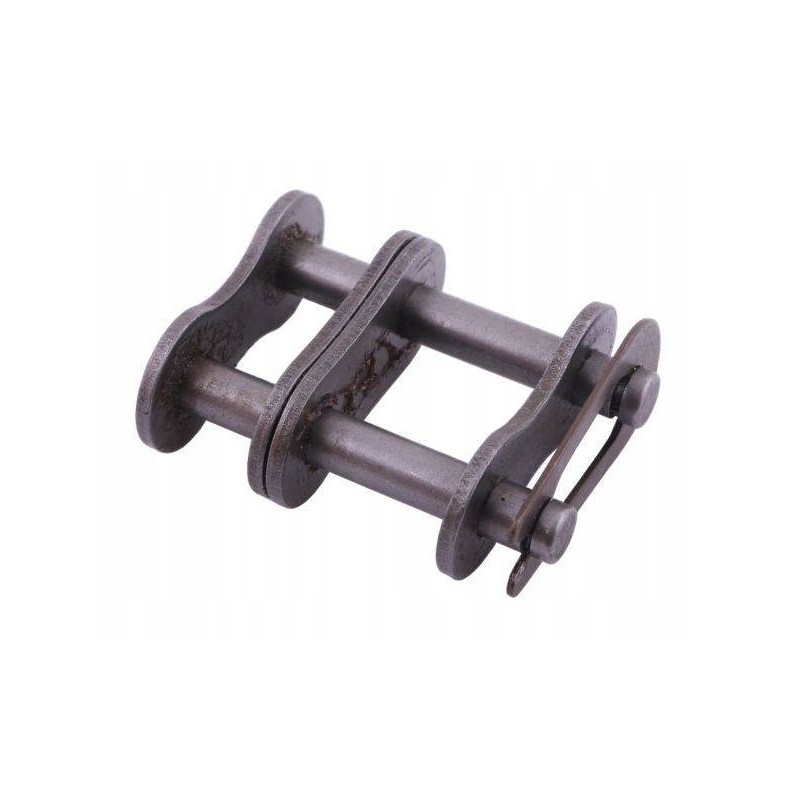

Chain lock 10b 2 r2 5 8 Warynski

CHAIN LOCK 10B-2 (R2 5/8) WARYŃSKIChain lock 10B-2 (R2 5/8) Waryński

*Parameters:

*Number of links: 1 link

*Pitch: 5/8' / 15.875 mm,

*Inner plate thickness: 1.70 mm,

*External plate thickness: 1.70 mm,

*Plate width: 13.50 mm,

*Max. width: 37.50 mm,

Increased abrasion resistance.

Hardening makes the chains stronger and have a longer service life. This process takes place under special supervision, thanks to which ideal parameters of the furnace and cooling liquid are ensured.

Tensile strength.

This is due to the fit of the pins with the plates, with an accuracy of up to a micron. Thanks to this, the chain works efficiently - the links do not break out and there is no slack. Precise grinding of the chain's cylindrical elements protects it against crushing and abrasion of the cylindrical elements.

Increased resistance to breaking.

All pins are forged with appropriate, repeatable force. If the chain is too tight, it may damage other components of the chain, while if it is too weak, it may break the chain. The repeatable crimping force, thanks to the automated process, guarantees that each link of the chain is identical and perfect

* Producer: Waryński
