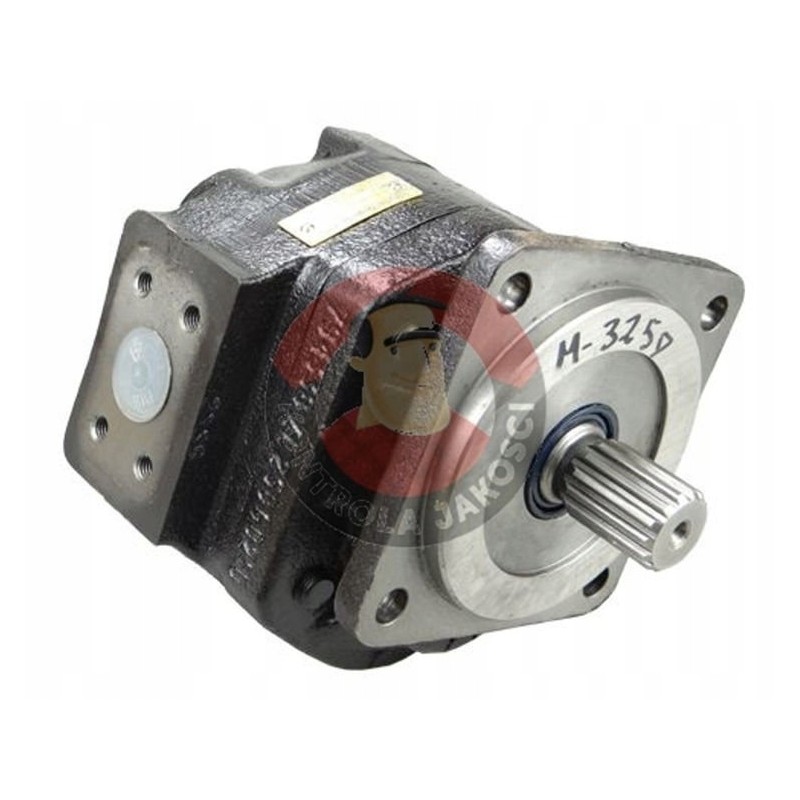

Gear engine m 325d wheel loader hsw 534

Gear motor M-325D MC2213C5B25D Wheel loader HSW 534 Waryński Gear motor M-325D MC2213C5B25D Wheel loader HSW 534 Waryński. All Waryński gear hydraulic motors are mounted in cast iron bodies. Depending on the purpose, they have different structures and number of sections, rotation, type of bearings used, seals, shaft ends, flanges, connection holes according to SAE standards. 100% of Waryński hydraulic motors are checked to confirm the quality of the final product and compliance with the catalog card and characteristics.

Manufacturer: Waryński Original

Product code: M-325D

Designation: M-325D

Application: HSW 534 charger

Comparison number: MC2213C5B25D, M-325D, 861-01-0024C1, 861-01-0024, 861-01 -0024C1, 861-01-0024, MC2213C5B25D, M-325D

Geometric volume: 85.7 cm3/rev

max. pressure: 21.0 MPa

Rotation speed range: 600-3000 rpm

Rotation direction: BI-DIRECTIONAL
