PTO shaft 910 1350mm 540nm ce 2020 series 4r warynski

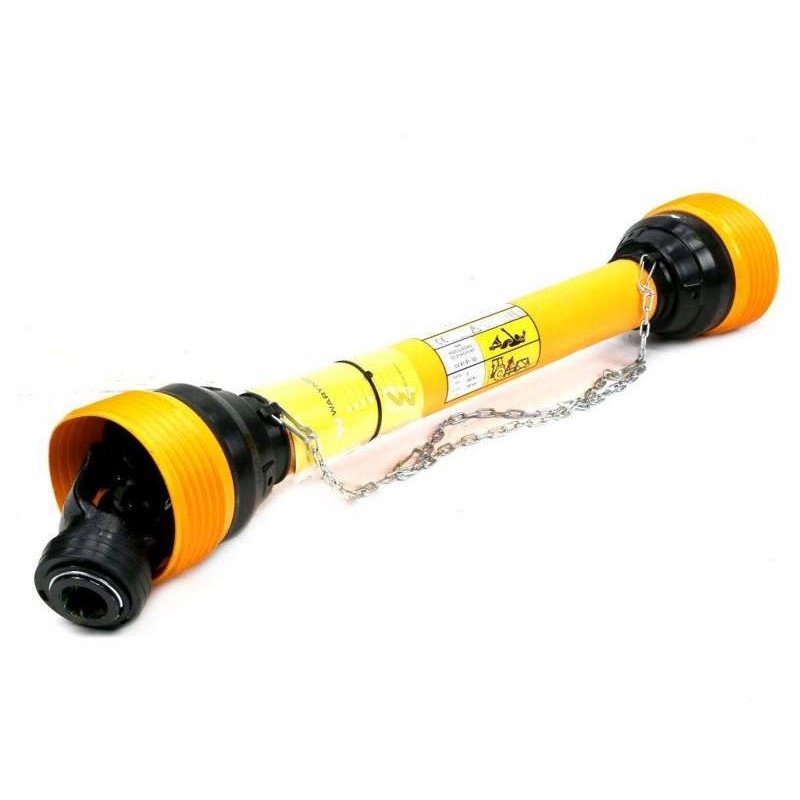

PTO shaft 910-1350mm 540Nm CE 2020 series 4R WaryńskiPublic telescopic shaft 910-1350mm 540Nm CE 2020 series 4R Waryński

The shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Producer: Waryński Original< p>

Product code: 33000420

Cross height: 82 mm

Bearing diameter: 27 mm

Outer tube thickness: 51.5 mm / 3 mm

Inner tube thickness: 45 mm / 3.8 mm

Clutch breaking power: None

Clutch: None

Power nominal: 540 Nm

Maximum length: 1350 mm

Minimum length: 910 mm

Type of telescopic connector: Triangular pipe

Mounting to machines: 1 3/8' Z6

Tractor attachment: 1 3/8' Z6
