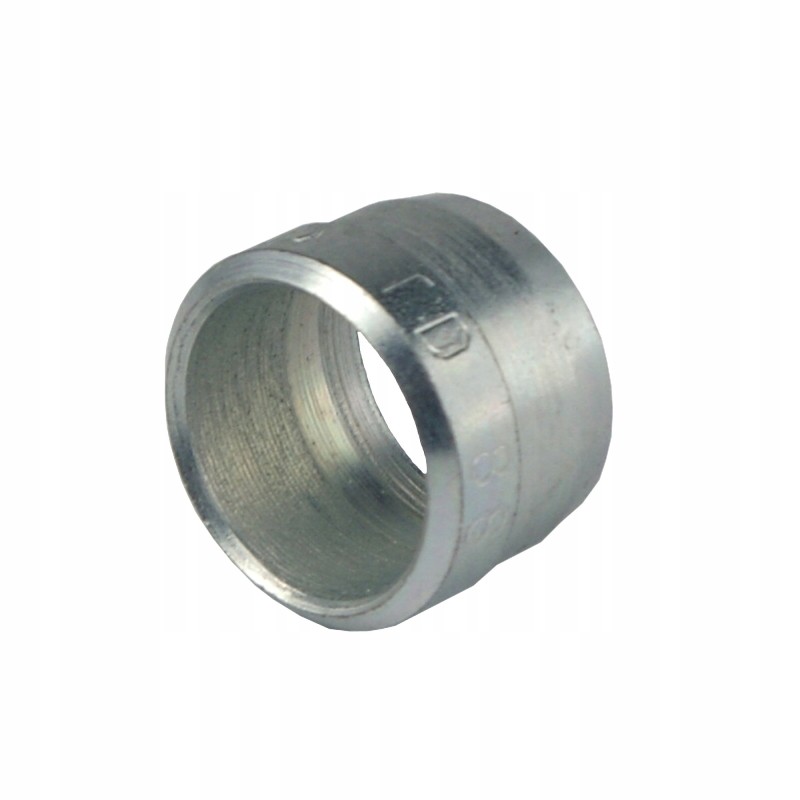

Tekalan clamping ring, tube diameter 8, hydrolider

TEKALAN CLAMPING RING FOR HYDRAULIC TUBE FI 8mm Production:

Original product of the Hydrolider brand, symbol: 1.60.62.103

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

TEKALAN type clamping ring mounted on a hydraulic pipe. Metal pipes are a solid carrier of the oil flow in the hydraulic system. Compared to hydraulic hoses, tubes are characterized by longer service life, resistance to weather conditions and resistance to very high pressures.

Technical data:

Ring intended for a 8mm tube

Fits a nut with M14x1.5 thread

Maximum pressure: 240 bar

Standard: PN-137 16-6

Material:

steel

TEKALAN rings are necessary to install metal pipes in the hydraulic system. For proper installation of the hydraulic pipe, in addition to the ring, you need a Tekalan nut, which we offer at other auctions (photo)

The TEKALAN system does not require additional sealing work, e.g. welding, during installation. Sealing occurs automatically, the ring seals the connection when the nut is tightened.

Example application:

installation of the so-called VBPDE valve. LOCK on the hydraulic cylinder using TEKALAN tubes and connectors:
