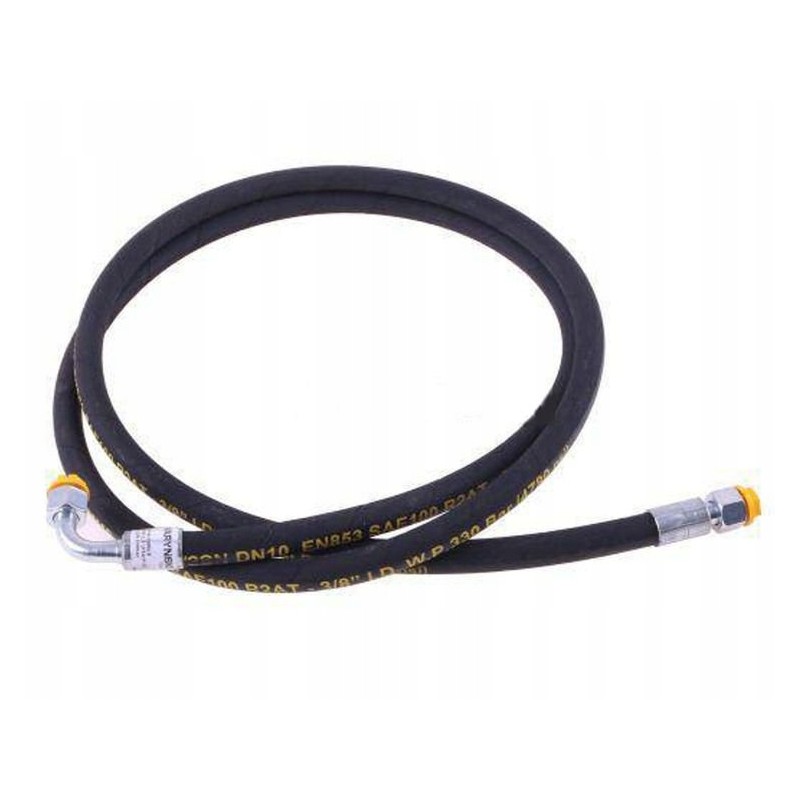

Hydraulic hose line l1250 m18x1 5 ak Warynski

Hydraulic hose L-1250mm AK M18x1.5 DN10-2SN 330 Bar WaryńskiHydraulic hose Waryński 330 bar (33MPa) - flexible, multi-functional forged hose reinforced with a double steel wire braid. Tested with pulsation pressure (medium: hydraulic oil). The Waryński hydraulic hose has protection in the form of yellow plugs on its crimped ends. Thanks to this, no contaminants get inside the lines, which could damage the working elements of the hydraulic system. All plugs are threaded and screwed onto the appropriate type of hydraulic hose end. Upon request, we can crimp any Waryński hydraulic hose of any length with any Waryński brand tip.

Producer: Waryński Original

Product code: 0000W-AK-10-1250/2

Application: Hydraulic drives and controls in industry and agriculture

Designation: W-AK-10-1250/2

internal diameter: 10 mm

Working pressure: 33.0 Mpa / 330 bar

Number of braids: 2

Operating temperature: from - 40°C to +100°C

Inner layer: Black rubber made of synthetic rubber, resistant to oil and water

Outer layer: Black rubber made of synthetic rubber, resistant to abrasion, oil, weather conditions and ozone

fitting 1 / thread : Straight/nut M18x1.5

Cut 2/thread: Angled 90 degrees/nut M18x1.5

Total length: 1250 mm

Comparison number: AK-10-1250,P11P12/211/10-1250

Warranty: 24 months
