Wal comer 1240 nm l 1210mm 8x32x38 comer 4310t8012

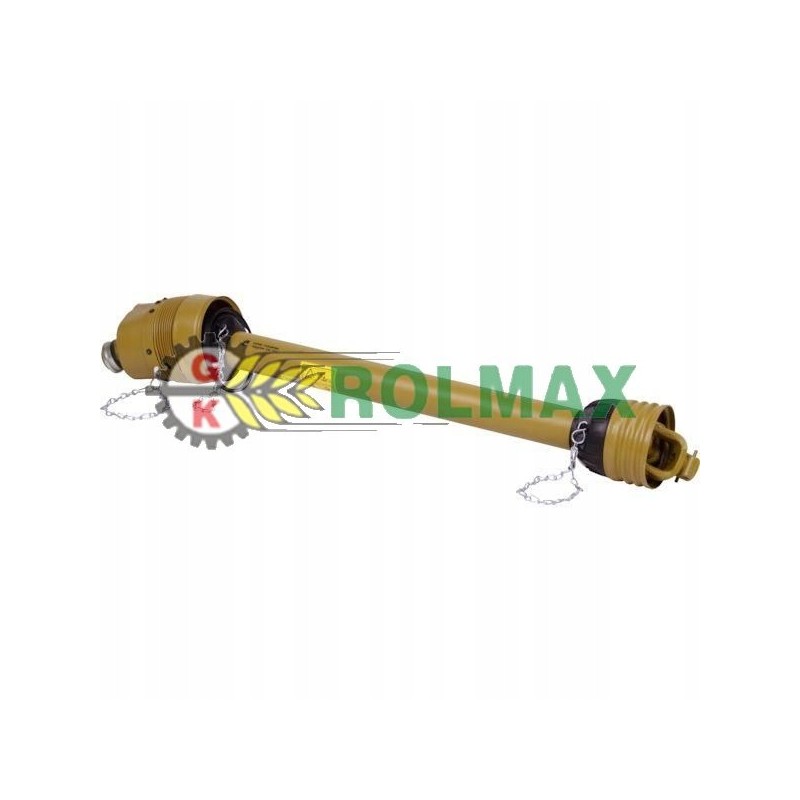

Comer shaft 1240 Nm L-1210mm 8x32x38 Comer 4310T801210NCZ8PZ8

Part number 4310T801210NCZ8PZ8 Unit piece Application - Soil cultivation machines

- Wood chippers

- Ster

Properties - Lubrication interval: 8 hours

- CE marked

Technical information - Follow the Comer operating instructions

- Max. dynamic capacity 540 rpm ./min: 79kW 1240Nm

- Max. dynamic capacity 1000rpm: 110kW 1050Nm

- Values at a deflection angle of 5° and a service life of 1000 hours

Outer diameter of the connection on the tractor side 38mm Inner diameter. connections on the tractor side 32mm Number of grooves on the tractor side 8 Outer diameter of the connection on the machine side 38mm Inner diameter connections on the machine side 32mm Number of grooves connection on the machine side 8 Shaft size T80 Length 1210mm Diameter of the cross sleeve on the tractor side 35mm Length of the cross on the tractor side 1065mm Diameter of the cross sleeve on the machine side 35mm Length of the cross on the machine side 1065mm
