The ha 1180 belt is super reinforced with a large gear

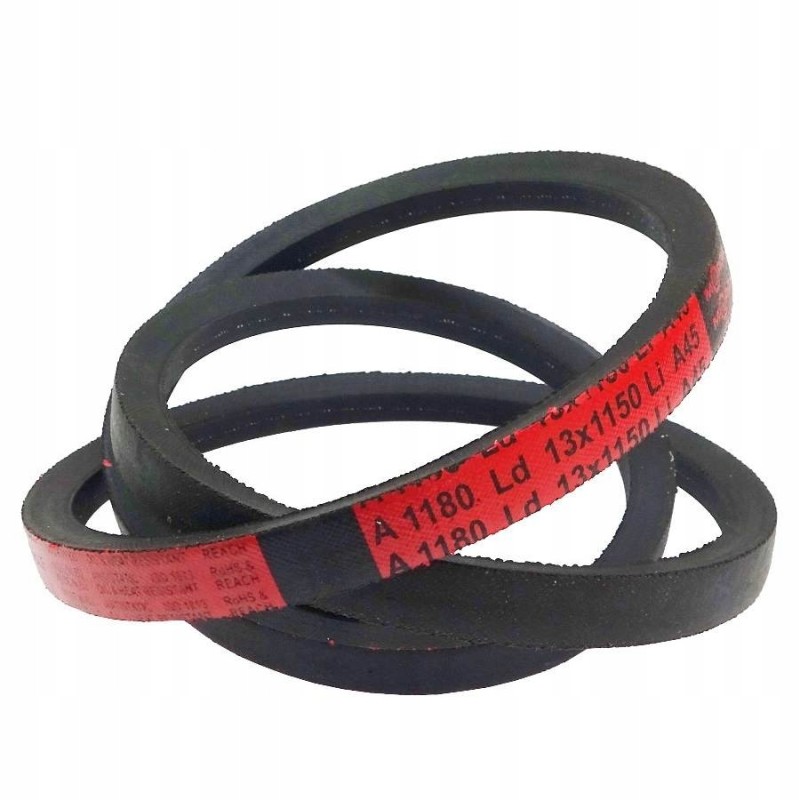

HA-1180 V-belt

Normal-profile V-belts are used in V-belt transmission.

In cross-section, they have the shape of an isosceles trapezoid, which ensures a high value of friction force with low initial tension of the belt

and very good cooperation between the belt and the pulleys. Dimensions

width: 13 mm

height: 8 mm

length: 1180 mm

Properties

Belts Morga wedges with an "A" profile are made of rubber based on caoutchoucs with good compression resistance and high flexibility. The belt core is made of rubber mixtures with textile filling providing additional deformation strength and compression resistance. Additional wraps with cotton-polyester fabric with high elasticity and low abrasion increase the life of the belts.

Permissible peripheral speed 30 m/s

Temperature resistance in the range from -35 C to +100 C

Oil resistance

Anti-static

Weight: ~ 0.13 kg/m

Recommended minimum pulley diameter dp: 71 mm Application:

Large gears load, operating under frequent overloads, e.g.: single- and double-cylinder piston pumps and compressors, jacks, hoists, etc. Wherever a strong and durable V-belt is needed. Weight: 0.140 kg

Ha-1180 Super Reinforced Heavy Duty Gears Belt Operating under frequent overloads, e.g. single- and double-cylinder piston pumps and compressors, hoists, lifts, etc. Wherever a strong and durable MotoGeneric B1939 V-belt is needed
