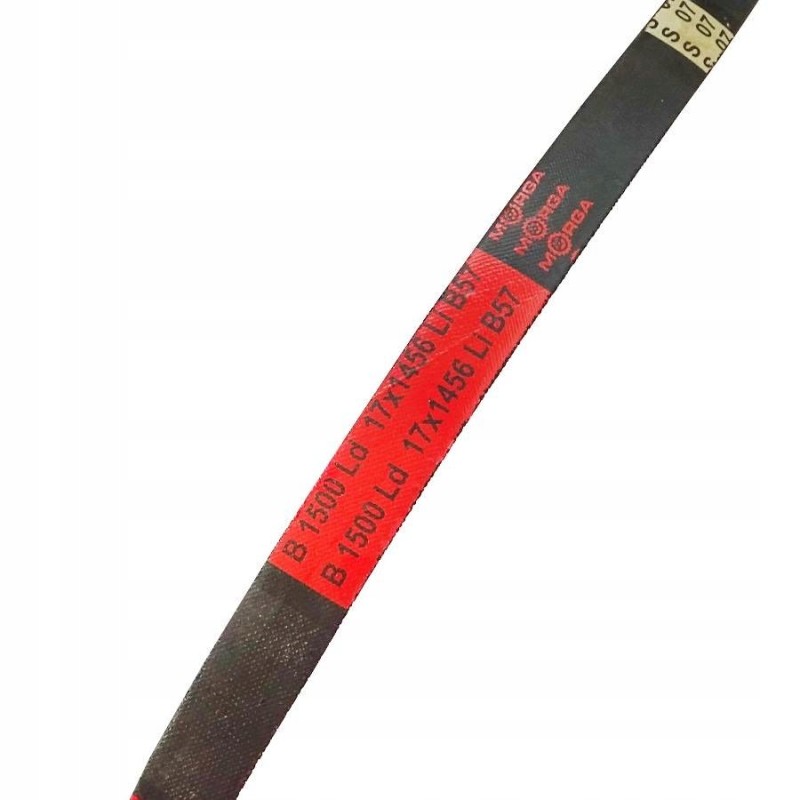

HB 1500 morga belt, super reinforced gear

HB-1500 V-belt

Normal-profile V-belts are used in V-belt transmission.

In cross-section, they have the shape of an isosceles trapezoid, which ensures a high value of friction force with low initial tension of the belt and very good cooperation between the belt and the pulleys.

Dimensions

width: 17 mm

height: 11 mm

length: 1500 mm

Properties

Belts Morga wedges with a "B" profile are made of rubber based on caoutchoucs with good compression resistance and high flexibility. The core of the belt is made of rubber mixtures with textile filling, providing additional deformation and compression resistance. Additional wrapping with cotton-polyester fabric with high elasticity and low abrasion increases the life of the belts.

Permissible peripheral speed 30 m/s

Resistance to temperatures ranging from -35C to +100C

Oil resistance

Antielectrostaticity

Weight: ~ 0.20 kg/m

Recommended minimum pulley diameter dp: 112 mm

Application

Gears with heavy loads, operating under frequent overloads, e.g. single- and double-cylinder piston pumps and compressors, jacks, hoists, etc. Wherever a durable and resistant V-belt is needed. Weight: 0.320 kg

HB-1500 MORGA super-reinforced belt Gears with heavy loads operating under frequent overloads, e.g.: piston pumps and compressors, single- and double-cylinder jacks, lifts, etc. Wherever a durable and resistant V-belt is needed. B1940
