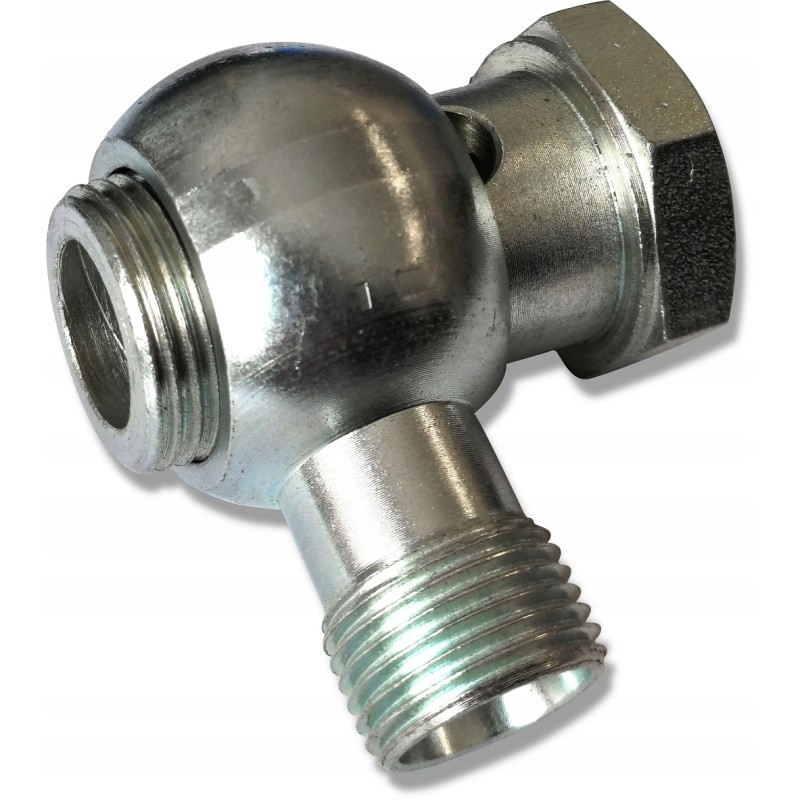

Eyelet connector m18 g3 8 screw g3 8 banjo

Hydraulic ring connector G3/8' with M18 thread with screw G3/8' SKRAW-MET CODE: [8364]The connector is perfect for hydraulically powered machines and devices.

It can be used in agriculture and horticulture , forestry, construction and broadly understood industry.

Eye ends, also called 'banjo' ends - used to enable connection of the hydraulic system with other elements.

Generally used when there is no hydraulic system has too much space for a knee switch, then an eyelet is used and tightened with a screw.

___At every stage of production, precision and quality supported by detailed measurements.

The most modern CAD/CAM software solutions and ERP/MRP allowing the production of details for the most demanding applications.

Technical Specifications: Total length of the eyelet with thread: 46 mm

Total length of the screw: 42 mm

Eyelet thread: M18x1.5

Screw thread: G3/8'

Material: Free-cutting carbon steel with zinc coating - Corrosion resistant
