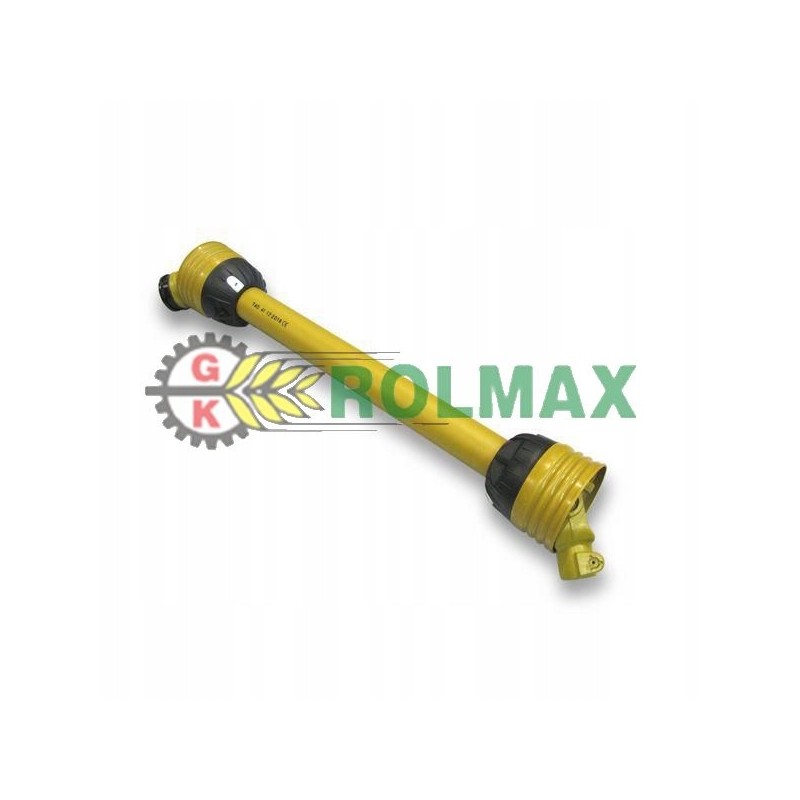

Wal comer t10 series 210 nm l 710 mm comer t100710

Shaft Comer series T10 210 Nm L-710 mm Comer T100710

Part number T100710 Unit piece Application - Hay rake

- Hay tedder

- Field sprayers< p>

Properties - Lubrication interval: 8 hours

- CE marked

Technical information - Follow the Comer operating instructions

- Max. dynamic capacity 540rpm: 12kW 210Nm

- Max. dynamic capacity 1000rpm: 18kW 172Nm

- Values at a deflection angle of 5° and a service life of 1000 hours

Outer diameter of the connection on the tractor side 1-3/8 inch Number of grooves in the connection on the tractor side 6 Type of connection on the tractor side Pin Outer diameter of the connection on the machine side 1-3/8 inch Number of grooves in the connection on the machine side 6 Connection type on the machine side Shaft Shaft size T10 Length 710mm Diameter of the cross sleeve on the tractor side 22mm Length of the cross on the tractor side 54mm Diameter of the cross sleeve on the machine side 22mm Length of the cross on the machine side 54mm Static torque max. 320N·m
