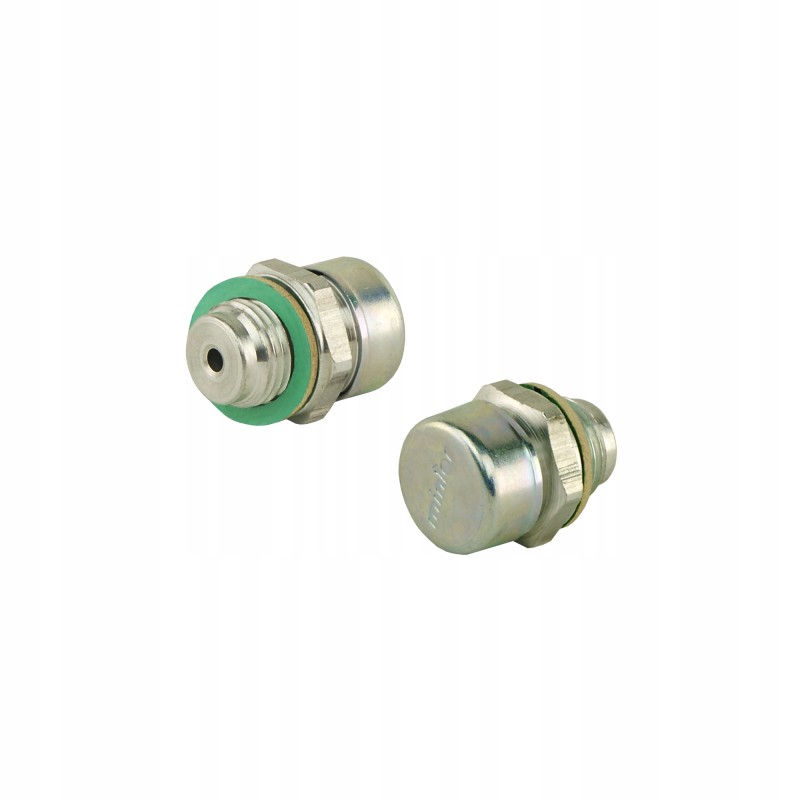

Hydro membrane breather tsfa 0g 1 8 mintor

HYDRAULIC BLADE AIR BLADE 1/8'Production:

Original Italian product of the Mintor brand, symbols: TSFA 0G, 1.34.75.063

Application:

It has a wide range of applications in systems hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

General purpose air vent, in hydraulic systems for bleeding and aerating gears, tanks, actuators, etc.

Helpful data:< p>

Thread diameter 1/8' measured with a caliper:

Outer diameter [mm]: 9.3 - 9.7

Inner diameter [mm]: 8, 5 - 8.9

Technical data:

Type of construction: mushroom head, diaphragm

Thread: external inch [BSP] 1/8'

Body material: steel

Maximum working pressure: 12 bar

Operating temperature: -20°C to +80°C
