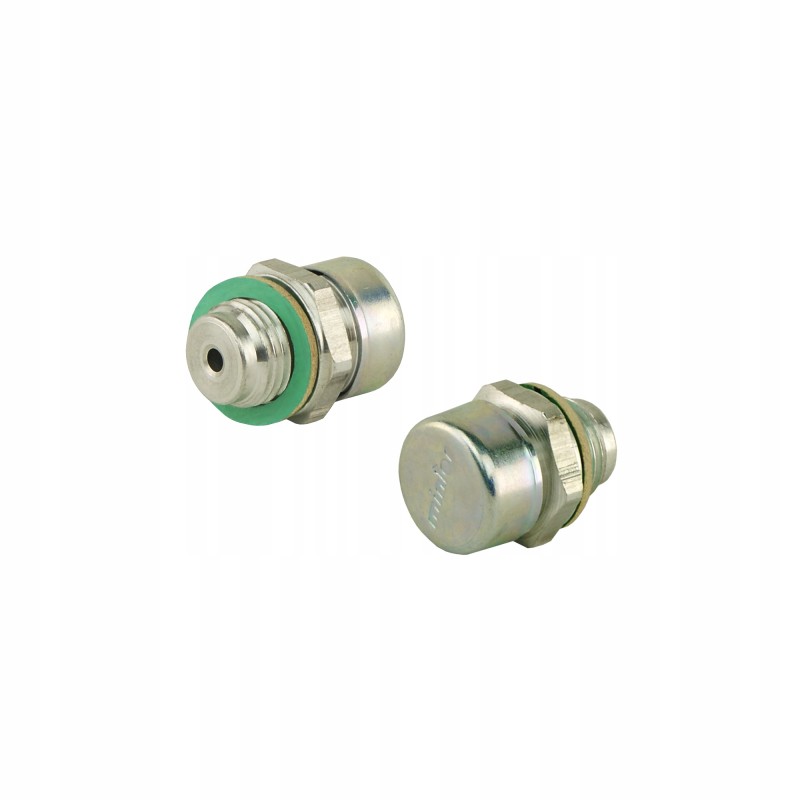

HYDRAULIC DIAGRAM AIR AIR VENT 1/4'Production:
Original Italian product of the Mintor brand, symbols: TSFA 1G, 1.34.75.064
Application:
It has a wide range of applications in systems hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.
General purpose air vent, in hydraulic systems for bleeding and aerating gears, tanks, actuators, etc.
Helpful data:< p>
BSP 1/4' thread diameter measured with a caliper
Outer diameter [mm]: 12.9 - 13.1
Inner diameter [mm]: 11, 4 - 11.9
Technical data:
Type of construction: mushroom head, diaphragm
Thread: external inch [BSP] 1/4'
Body material: steel
Maximum working pressure: 12 bar
Operating temperature: -20°C to +80°C
