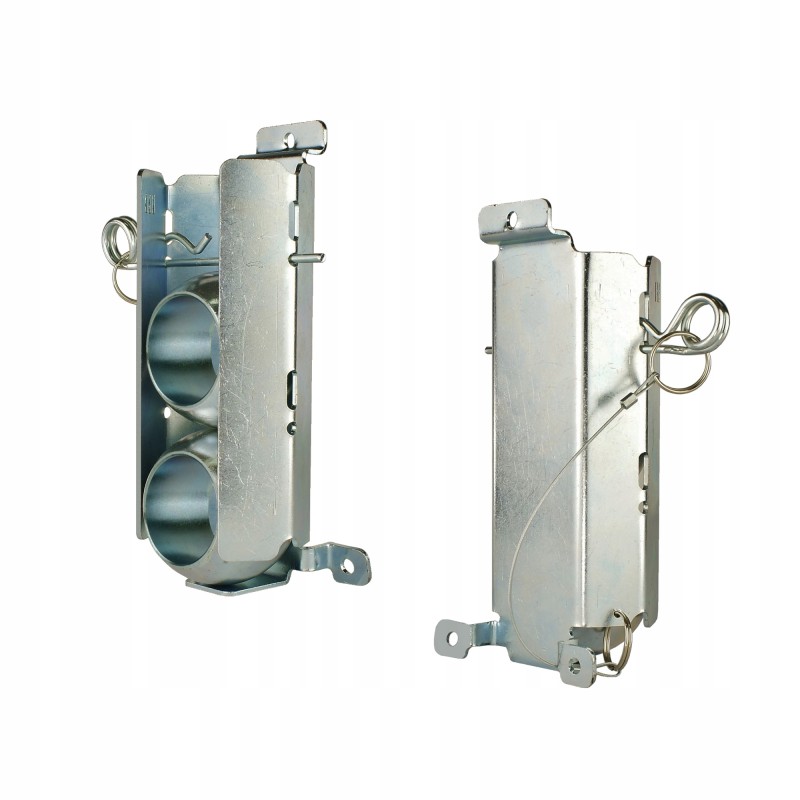

Magazine with BK Cat2 3 56 37 hydrolider bullets

MAGAZINE FOR BALLS WITH TWO BALLS 56x37x45 2/3 CATEGORIES FOR THREE-POINT SUSPENSION SYSTEM Production:

Original product of the Hydrolider brand, symbol: 2.00.18.323.1

Application:

The set has a wide range of applications in agriculture, horticulture, construction and industry.

The bracket allows you to store balls in a safe and designated place on the tractor, machine or wall in the garage or machinery park.

A ball without a guide collar allows for quick connection and disconnection of machines from the tractor. Used in the hook mounting system for the lower link of the CBM category 2/3.

Installation:

Example photo of the mounted magazine at the rear of the tractor on the inner part of the fender:

Technical data:

Set composition:

Magazine

Two balls

Cable

Securing pin

STORAGE: Bracket material: 2 mm thick galvanized sheet

Total height: 173 mm

Total width: 82 mm

Total thickness: 59 mm

Maximum number of stored balls: 2 pieces

Maximum diameter of stored balls: 56 mm

BALLS:

Material: SAE 1020 (hardened steel)

Inner diameter: 37mm

Outer diameter: 56mm

Length: 45mm
