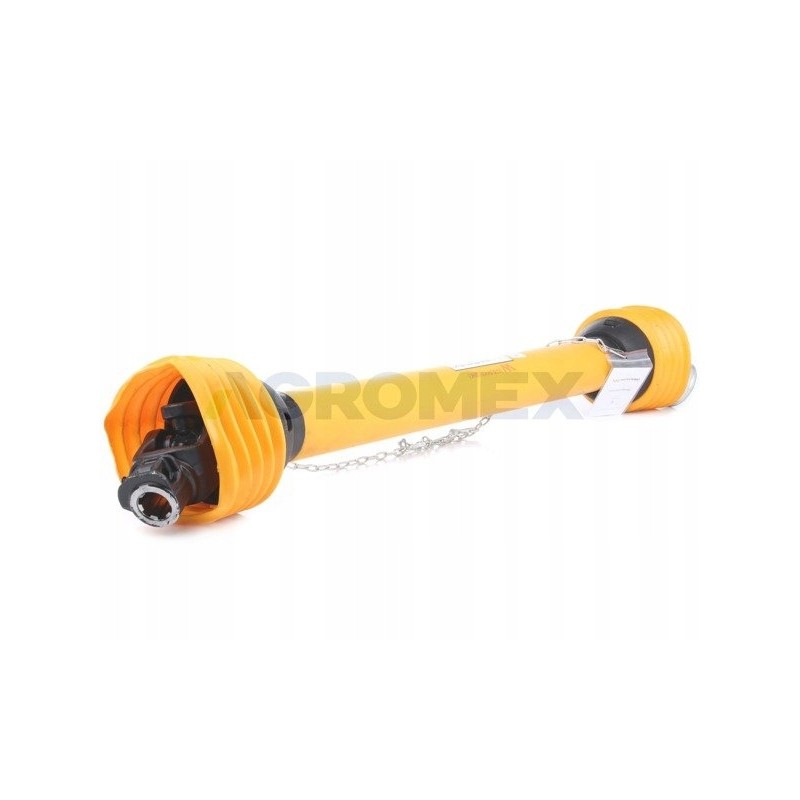

PTO shaft 1010 1500mm 620nm ce 60270 series 5 warynski

PTO shaft 1010-1500mm 620Nm 60270 CE series 5 WARYŃSKI<,span style='font-size: 12pt,'>,<,br style='font-size: 12pt,' />,<,span style='color: red,'>,<,/span>,<,/span>,

Producer: Waryński Original

Product code: 33036468

Product code: 33036468

Designation: WA62-101

Comparison number: 60270

Application: Z-511 baler, Feed wagon

Mounting to the tractor: 1 3 /8' Z6

Mounting to the machine: 1 3/8' Z6

Type of telescopic connector: Triangular tube

Minimum length: 1010 mm

Maximum length: 1500 mm

Nominal power: 620 Nm

Clutch: None

Inner tube thickness: 44.7 mm / 4 mm

Outer tube thickness: 51.3 mm / 2.9 mm

Bearing diameter: 30.2 mm

Cross height: 80 mm

Works with: External fork - W21950507B, External fork with a ring - W21950513B, Cross connector - W219501, Internal fork of the internal pipe. - W219507, Outer pipe inner fork - W219506, Inner pipe - W219604828, Outer pipe - W219503853, Housing - W21995101, Stem - W219970202
