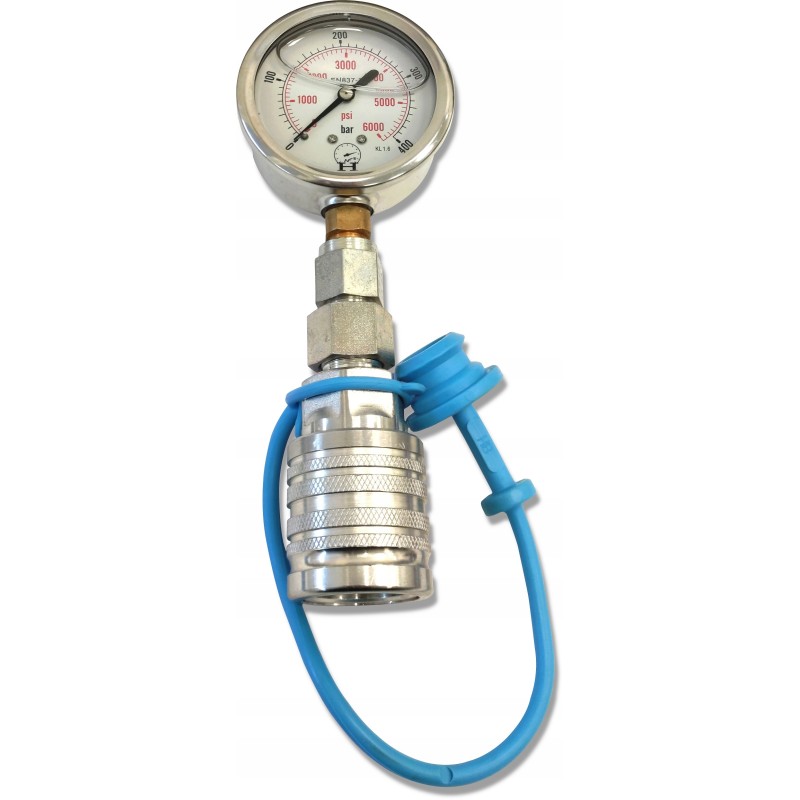

Pressure gauge 400 bar, quick connector, Euro M18 socket

MEASURING SET FOR CHECKING PRESSURE IN A HYDRAULIC SYSTEM SKRAW-MET CODE: [8371] GLYCERINE MANOMETER WITH EURO QUICK CONNECTOR PRESSURE MEASURING RANGE: 0 - 400 Barmanometers intended for measuring liquid pressure in closed systems for measuring the pressure of gases and liquids that do not react with copper alloys.

Pressure gauge inside filled with glycerin. The glycerine manometer differs from standard manometers by having an interior filled with glycerine, which secures and protects the pointer against vibrations and oscillations.

Glycerine also allows you to increase the level of measurement accuracy.

It has a plug to equalize the pressure inside the manometer with the atmospheric pressure.

Application:The glycerine manometer perfectly checks used in hydraulically powered machines and devices.

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Set components: [0313] Hydraulic manometer, pressure gauge 0 - 400 BAR

[1403] G1/ manometric connector 4' - M18x1.5

[1413] Euro socket dust cover plug (blue)

[0164] EURO socket quick connector M18x1.5

Technical data: Pressure measurement range: 0 - 400 Bar

Clock outer diameter: 63 mm

Thickness clock: 30 mm

Connection port thread [BSP]: 1/4' (requires a special connection available on our other auctions)

Operating temperature: -10°C to +50°C

Accuracy class: 1.6

Material: steel housing, glass viewfinder

(SHOW PHOTO - depending on the delivery, the pressure gauge and other elements may differ visually, but their functionality is identical to the description.)
