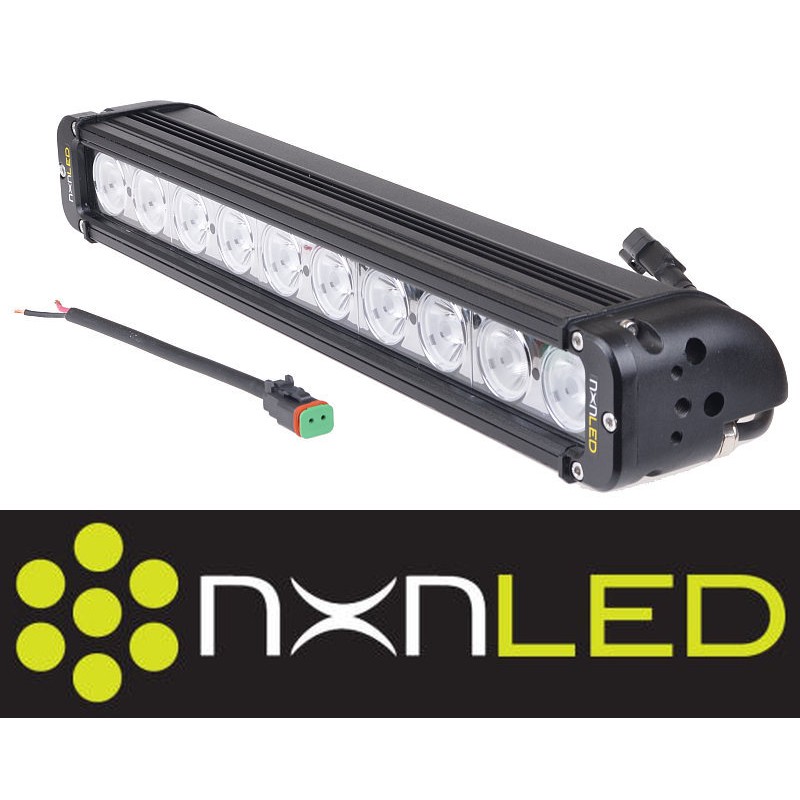

Long-distance lamp panel combo mix 100w Cree LED

AUCTION SUBJECT:

Professional, waterproof, efficient and at the same time energy-saving nXn LED 100W lamp with 10x 10W CREE USA XM-L diodes

Combo-mix light: 4x10W flood + 6x10W spot

nXn LED BCX100CMX

Application: very efficient, resistant to mechanical shocks, lighting for a quad, special car, off-road vehicle, construction or agricultural machinery

Armored structure (vibration resistance over 16G) and solid mounting will ensure survival in all conditions

the set includes two aluminum feet mounted from the bottom with anti-vibration inserts and adjustment throughout lamp width

and steel side mountings with adjustable inclination angle

You don't buy blindly from us - you can see how the offered product shines!!!

In the photo, the offered lamp is mounted at a height of approx. 75cm

Parameters of the nXnLED BCX100CMX lamp:

- lamp power : 100W (equivalent to traditional 500W light)

- supply voltage: 9V-48V

- theoretical current consumption at 12V: max 8.35A

- actual current consumption at 13.8V power supply: approx. 6.2A

- light source: 10x 10W CREE USA LED XM-L

- theoretical light flux: 9000 lm

- real light flux: not less than 8600 lm

- type of lighting: combo-mix light, wide 4x40o + focused 6x12o

- color temperature: 6500K (day white)

- service life: 50,000 operating hours

- protection level: IP68

- operating temperature: -45 to +85 oC

- housing: 6061 aluminum alloy

- front glass: polycarbonate

- weight: 2.5kg

- dimensions: width 440mm, depth 90mm, height 62mm, height on the base 70mm

- assembly: 2 M6 screw holders with anti-vibration base + set of side mountings

- power supply: due to low power consumption, the lamp does not require additional relays

- set includes: lamp with cable approx. 15 cm terminated with a hermetic connector, cable approx. 20 cm with a hermetic plug, mountings with class 70 stainless steel screws

* proportionally, the higher the voltage, the lower the current will be, when powered by a 24V installation (i.e. 28V in reality), the current consumption will be max. 3.6A

The highest quality materials and proprietary components used in the construction guarantee long and failure-free operation:

- efficient heat dissipation

- LED USA driver system

- efficient MOS power transistors

- selected CREE USA XML LEDs

- fully shielded elements inductive

- effective protection against polarization change

- TDK capacitors

- high-quality USA optics

We offer this type of lamps with CREE XM-L diodes and spot or flood light as well as combo-mix with a power of 20-260W, you will find them on our other auctions .

In our other auctions you can buy other models of LED lamps, switches and accessories.
