Pologniwo 3 4 x 7 16

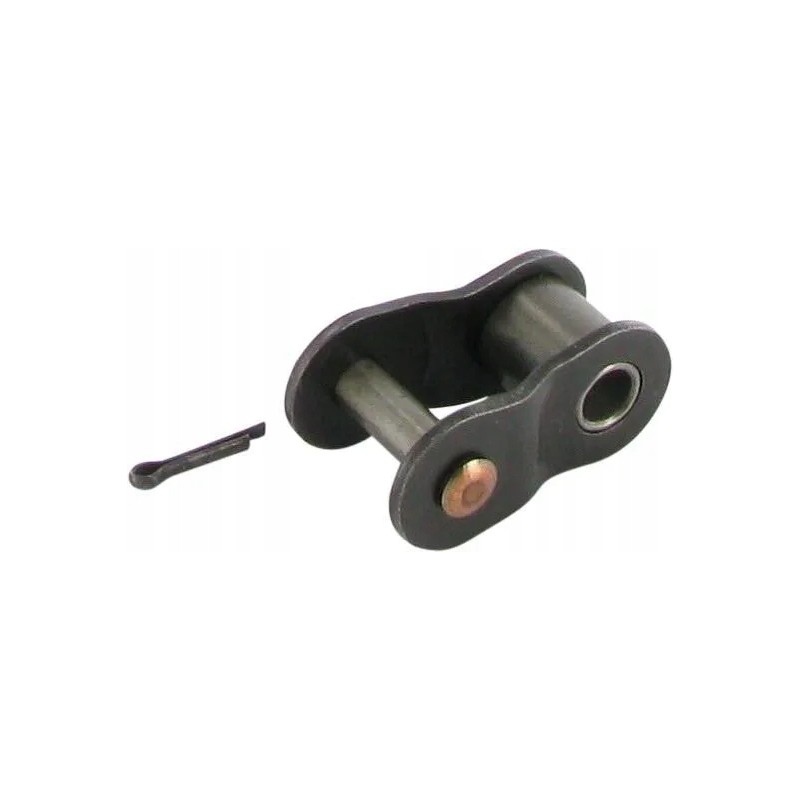

Half-link, 3/4 x 7/16

Part number: K.RS12B1V

EAN: 8718472230734

Unit: Art

Specifications: Connecting link with patented extruded ring design

Application: Tsubaki simplex roller chain Features:

Straight link (closing) for RS16 including spring clip

Bent link (running) with pin

Benefits: Offers up to 100% of the strength of the stock chain Link pitch: 19.05mm

Link pitch: 3/4 inch

Internal width: 11.68mm Internal Width: 7/16 inch

Internal link width: 15.62mm External width: 22.6mm Pin length: 24.4mm

Pin diameter: 5.72mm Roll diameter: 12.07mm

Height: 16.4mm

Size L1: 11.1mm

Size L2: 13mm

ISO size: 12 B-1

Internal cell wall thickness: 1.8mm Outer cell wall thickness: 1.8mm DIN standard: 8187

Type: Single

Product category: Half-cell
