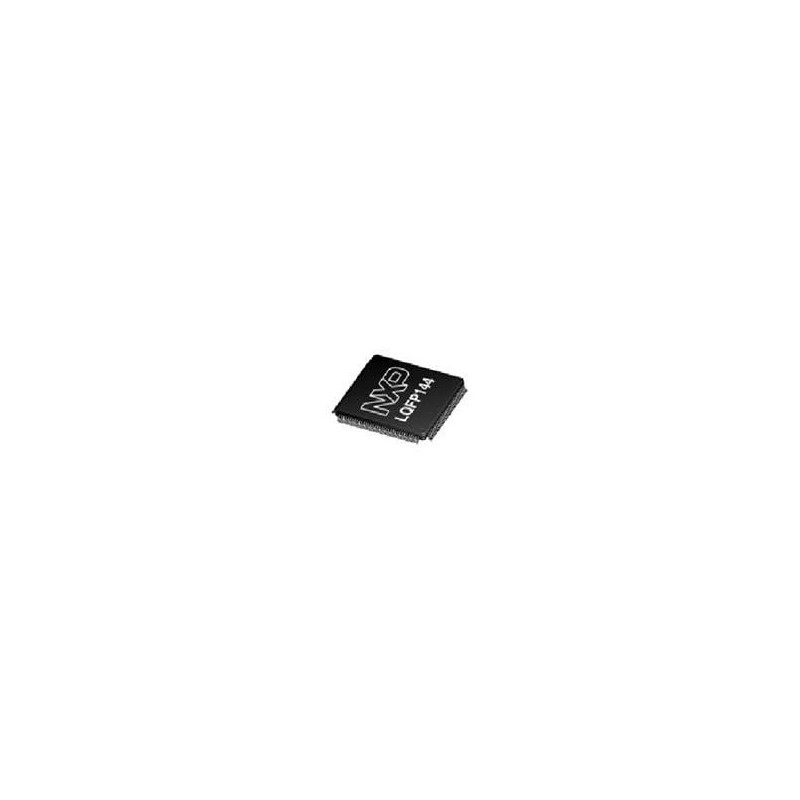

    1 pcs : LPC2378FBD144K - ARM Microcontrollers - MCU ARM7 with 512KB flash, 58 KB SRAM, Ethernet, USB 2.0 Device, CAN, and 10-bit
    • 1 pcs : LPC2378FBD144K - ARM Microcontrollers - MCU ARM7 with 512KB flash, 58 KB SRAM, Ethernet, USB 2.0 Device, CAN, and 10-bit

    1 pcs : LPC2378FBD144K - ARM Microcontrollers - MCU ARM7 with 512KB flash, 58 KB SRAM, Ethernet, USB 2.0 Device, CAN, and 10-bit

    Allparts-UK/M/771-LPC2378FBD144K
    £55.92
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    LPC23x ARM7™ based MCUs NXP Semiconductors LPC23x ARM7™ based MCUs are built for connectivity, these powerful ARM7™ based microcontrollers (MCUs) support 10/100 Ethernet, full-speed (12Mbps) USB 2.0, and CAN 2.0B. The devices have up to 512KB of ISP/IAP Flash, up to 58KB of SRAM, 10-bit A/D, and D/A converters, as well as an IRC oscillator, and options for an SD memory card interface. The MCUs feature two AHB buses so high-bandwidth peripherals like Ethernet and USB can run simultaneously without impacting the main application. Applications include industrial control, POS systems, protocol conversion, building automation, and security systems.
    Product Details
    NXP Semiconductors
    Allparts-UK/M/771-LPC2378FBD144K
    LPC2378FBD144K
    10 Items

    Data sheet

    Manufacturer
    NXP
    Series
    LPC2300
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Product Type
    ARM Microcontrollers - MCU
    Interface Type
    CAN, I2C, I2S, SPI, USB
    Package/Case
    LQFP-144
    Core
    ARM7TDMI-S
    Product Category
    ARM Microcontrollers - MCU
    Program Memory Size
    512 kB
    Packaging
    Tray
    RoHS
    Details
    Data RAM Size
    58 kB
    Maximum Clock Frequency
    72 MHz
    ADC Resolution
    10 bit
    Number of I/Os
    104 I/O
    Supply Voltage - Min
    3 V
    Supply Voltage - Max
    3.6 V
    Data Bus Width
    32 bit/16 bit
    Brand
    NXP Semiconductors
    Data RAM Type
    SRAM
    Number of ADC Channels
    8 Channel
    Number of Timers/Counters
    4 Timer
    Operating Supply Voltage
    3 V to 3.6 V
    Product
    MCUs
    Program Memory Type
    Flash
    Factory Pack Quantity Factory Pack Quantity
    300
    Subcategory
    Microcontrollers - MCU
    Watchdog Timers
    Watchdog Timer
    DAC Resolution
    10 bit
    Part # Aliases
    935282458557
