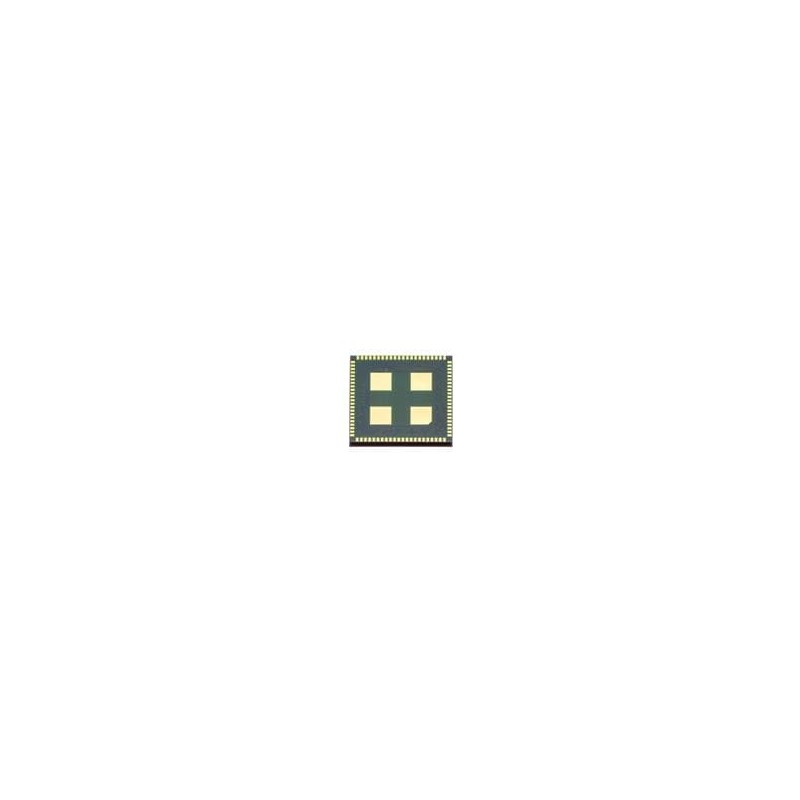

    1 pcs : MAX32680GLR+ - ARM Microcontrollers - MCU Ultra-Low-Power Micro with Precision Analog, HART & BLE
    • 1 pcs : MAX32680GLR+ - ARM Microcontrollers - MCU Ultra-Low-Power Micro with Precision Analog, HART & BLE

    1 pcs : MAX32680GLR+ - ARM Microcontrollers - MCU Ultra-Low-Power Micro with Precision Analog, HART & BLE

    electronicparts-UK/M/700-MAX32680GLR+
    £36.36
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    MAX32680 Ultra-Low-Power Wireless Microcontroller Analog Devices MAX32680 Ultra-Low-Power Wireless Microcontroller (MCU) is an advanced System-on-Chip (SoC) based on an Arm® Cortex®-M4F core. The MAX32680 features an integrated BLUETOOTH® 5.2 Low Energy (LE) radio, supporting BLE Audio, Angle of Arrival (AoA), and Angle of Departure (AoD) for direction finding, long-range (coded) modes, and high-throughput modes. The MAX32680 offers large onboard memory with 512KB flash and 128KB SRAM, with optional Error Correction Coding (ECC) on one 32KB SRAM bank. This 32KB bank can be optionally retained in BACKUP mode. An 8KB user One-Time Programmable (OTP) area is available, and 8 bytes are retained, even during power-down. The SoC also integrates power regulation and management with a Single-Inductor Multiple-Output (SIMO) buck regulator system.
    Product Details
    Analog Devices / Maxim Integrated
    electronicparts-UK/M/700-MAX32680GLR+
    MAX32680GLR+
    10 Items

    Data sheet

    Manufacturer
    Analog Devices Inc.
    Series
    MAX32680
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Product Type
    ARM Microcontrollers - MCU
    Interface Type
    I2C, SPI, UART
    Package/Case
    LGA-88
    Core
    ARM Cortex M4F
    Product Category
    ARM Microcontrollers - MCU
    Program Memory Size
    512 kB
    Packaging
    Tray
    RoHS
    Details
    Data RAM Size
    128 kB
    Maximum Clock Frequency
    100 MHz
    ADC Resolution
    16 bit, 24 bit
    Number of I/Os
    36 I/O
    Supply Voltage - Min
    2 V
    Supply Voltage - Max
    3.6 V
    Data Bus Width
    32 bit
    Brand
    Analog Devices / Maxim Integrated
    Data RAM Type
    RAM
    Moisture Sensitive
    Yes
    Number of ADC Channels
    12 Channel
    Number of Timers/Counters
    6 x 32 bit
    Product
    MCUs
    Program Memory Type
    Flash
    Factory Pack Quantity Factory Pack Quantity
    168
    Subcategory
    Microcontrollers - MCU
    Watchdog Timers
    Watchdog Timer
    DAC Resolution
    12 bit
    Development Kit
    MAX32680EVKIT
    Analogue Supply Voltage
    3.3 V
