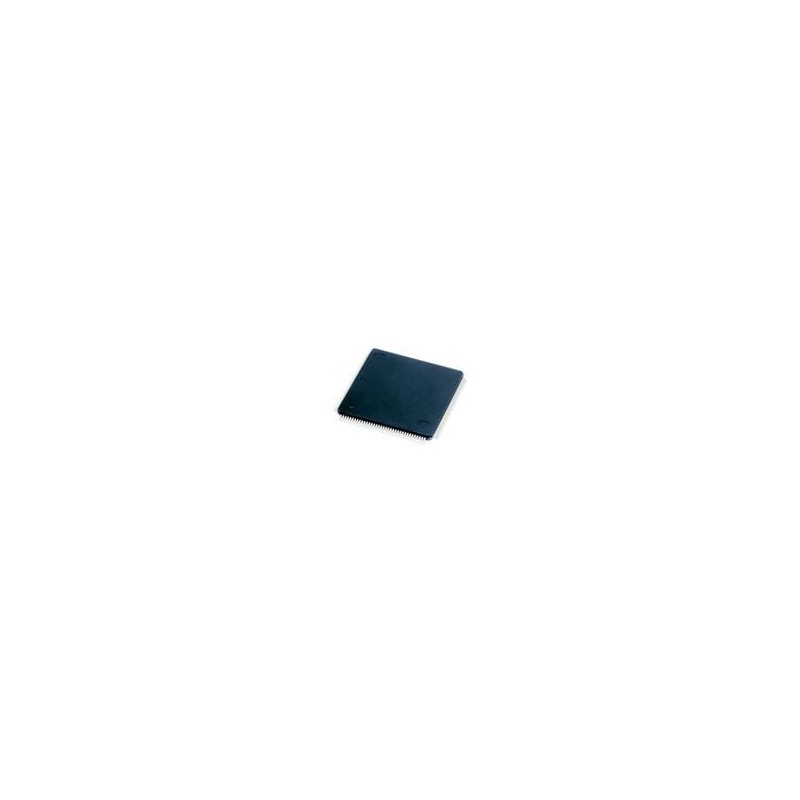

    1 pcs : TMS5700714APGEQQ1R - ARM Microcontrollers - MCU High Performance 32-bit ARM Cortex-R5 based Microcontroller 144-LQFP -40
    • 1 pcs : TMS5700714APGEQQ1R - ARM Microcontrollers - MCU High Performance 32-bit ARM Cortex-R5 based Microcontroller 144-LQFP -40

    1 pcs : TMS5700714APGEQQ1R - ARM Microcontrollers - MCU High Performance 32-bit ARM Cortex-R5 based Microcontroller 144-LQFP -40

    Allparts-UK/M/595-S5700714APGEQQ1R
    £42.49
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    TMS570LS0714 32-Bit RISC Flash Microcontroller Texas Instruments TMS570LS0714 32-Bit RISC Flash Microcontroller integrates the ARM Cortex-R4F floating-point CPU, which offers an efficient 1.66DMIPS/MHz. This MCU has configurations that can run up to 160MHz, providing up to 265DMIPS. The TMS570LS0714 device has on-chip diagnostic features, including dual CPUs in lockstep, CPU, and memory Built-In Self-Test (BIST) logic, and ECC on both the flash and the SRAM. Additional features include parity on peripheral memories and loopback capability on most peripheral I/Os. With integrated functional safety features and a wide choice of communication and control peripherals, the TMS570LS0714 device is ideal for high-performance, real-time control applications with safety-critical requirements.
    Product Details
    TEXAS INSTRUMENTS
    Allparts-UK/M/595-S5700714APGEQQ1R
    TMS5700714APGEQQ1R
    10 Items

    Data sheet

    Manufacturer
    TEXAS INSTRUMENTS
    Series
    TMS570LS0714-S
    Maximum Operating Temperature
    + 125 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Product Type
    ARM Microcontrollers - MCU
    Interface Type
    CAN, I2C, SCI, SPI
    Package/Case
    LQFP-144
    Core
    ARM Cortex R4F
    Product Category
    ARM Microcontrollers - MCU
    Program Memory Size
    768 kB
    Packaging
    MouseReel
    RoHS
    Details
    Data RAM Size
    128 kB
    Maximum Clock Frequency
    160 MHz
    ADC Resolution
    12 bit
    Number of I/Os
    64 I/O
    Supply Voltage - Min
    1.14 V
    Supply Voltage - Max
    1.32 V
    Data Bus Width
    32 bit/16 bit
    Brand
    Texas Instruments
    Data RAM Type
    RAM
    Data ROM Size
    64 kB
    Data ROM Type
    EEPROM
    Moisture Sensitive
    Yes
    Number of ADC Channels
    24 Channel
    Product
    MCU+FPUs
    Program Memory Type
    Flash
    Factory Pack Quantity Factory Pack Quantity
    500
    Subcategory
    Microcontrollers - MCU
    Watchdog Timers
    Watchdog Timer, Windowed
    Unit Weight
    1.291 g
    Analogue Supply Voltage
    5.25 V
    I/O Voltage
    3.3 V
