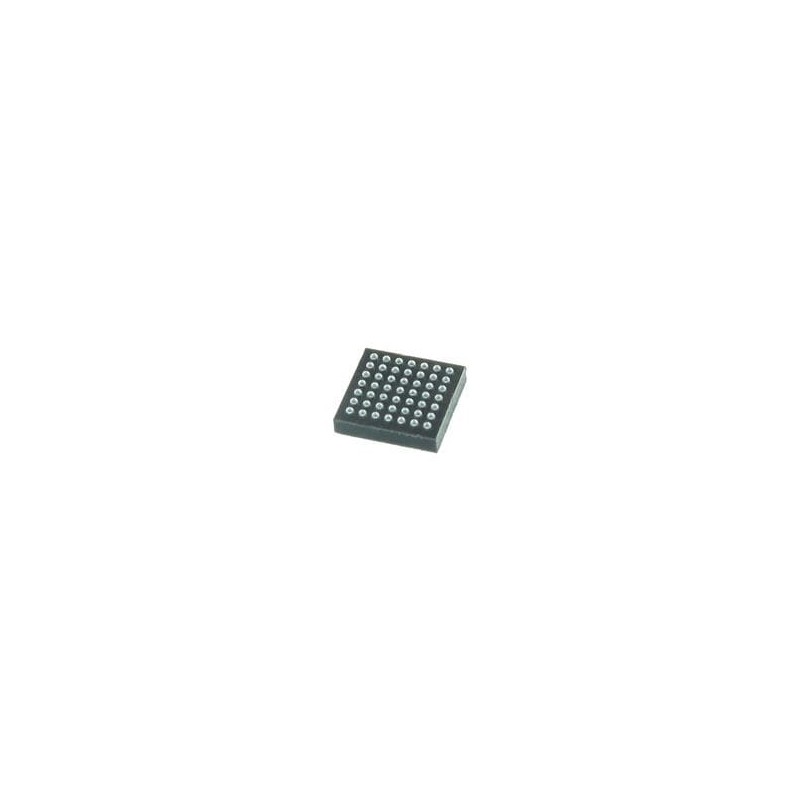

    1 pcs : LPC54114J256UK49Z - ARM Microcontrollers - MCU LPC54114J256UK49
    • 1 pcs : LPC54114J256UK49Z - ARM Microcontrollers - MCU LPC54114J256UK49

    1 pcs : LPC54114J256UK49Z - ARM Microcontrollers - MCU LPC54114J256UK49

    electronicparts-UK/M/771-LPC54114J256UK49
    £17.07
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    LPC5411x ARM Cortex-M4 Microcontrollers NXP Semiconductors LPC5411x ARM Cortex-M4 Microcontrollers are low-power consumption MCUs with enhanced debug features and a high level of support block integration. These devices offer up to 192KB of on-chip SRAM and up to 256KB on-chip flash. The LPC54114 includes an Arm® Cortex-M0+ coprocessor. The LPC4211x MCUs address a variety of always-on applications with several interfaces and smart peripherals. These interfaces and peripherals include a Digital Microphone Subsystem, crystal-less FS USB, and FlexComm interface. The LPC5411x MCUs are available in two package options. The LPC5411xBD64 is offered in a 10mm2 LQFP64 (64-lead Plastic Low Profile Quad Flat Package). LPC5411xUK49 is offered in a 3.45mm2 WLCSP49 (49-bump Wafer Level Chip Size Package).
    Product Details
    NXP Semiconductors
    electronicparts-UK/M/771-LPC54114J256UK49
    LPC54114J256UK49Z
    10 Items

    Data sheet

    Manufacturer
    NXP
    Series
    LPC5411x
    Maximum Operating Temperature
    + 105 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Product Type
    ARM Microcontrollers - MCU
    Interface Type
    I2C, I2S, SPI, USART, USB
    Package/Case
    WLCSP-49
    Core
    ARM Cortex M0+, ARM Cortex M4
    Product Category
    ARM Microcontrollers - MCU
    Program Memory Size
    256 kB
    Packaging
    Cut Tape
    RoHS
    Details
    Data RAM Size
    192 kB
    Maximum Clock Frequency
    150 MHz
    ADC Resolution
    12 bit
    Number of I/Os
    37 I/O
    Supply Voltage - Min
    1.62 V
    Supply Voltage - Max
    3.6 V
    Data Bus Width
    32 bit
    Brand
    NXP Semiconductors
    Data RAM Type
    SRAM
    Number of ADC Channels
    12 Channel
    Number of Timers/Counters
    5 Timer
    Processor Series
    LPC5411x
    Product
    MCU+FPUs
    Program Memory Type
    Flash
    Factory Pack Quantity Factory Pack Quantity
    2000
    Subcategory
    Microcontrollers - MCU
    Watchdog Timers
    Watchdog Timer, Windowed
    Unit Weight
    1 mg
    Part # Aliases
    935306276012
    Analogue Supply Voltage
    1.62 V to 3.6 V
