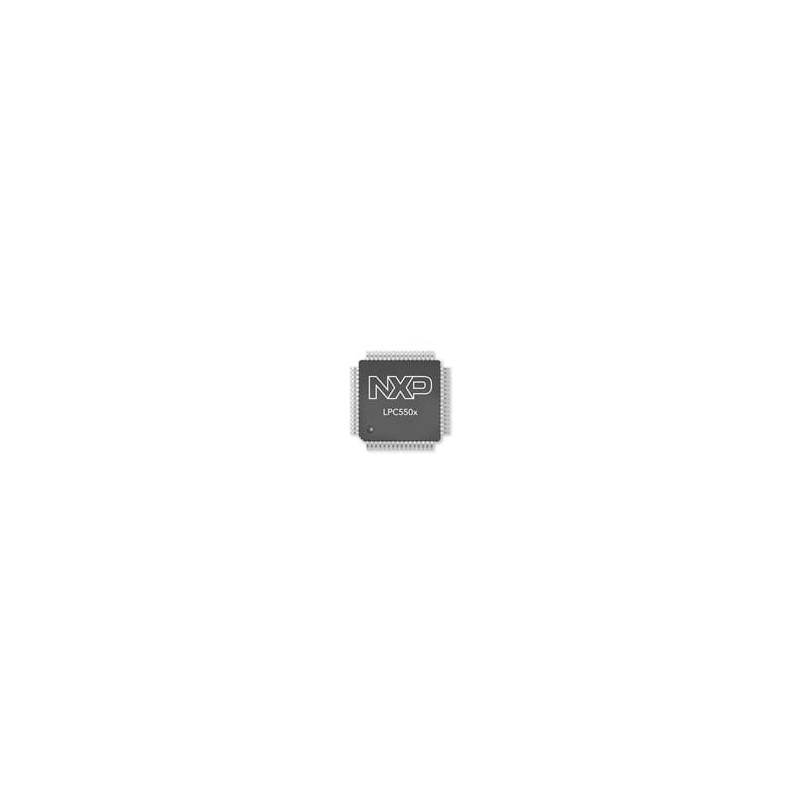

    1 pcs : LPC55S06JBD64Y - ARM Microcontrollers - MCU LPC55S06JBD64
    • 1 pcs : LPC55S06JBD64Y - ARM Microcontrollers - MCU LPC55S06JBD64

    1 pcs : LPC55S06JBD64Y - ARM Microcontrollers - MCU LPC55S06JBD64

    electronicparts-UK/M/771-LPC55S06JBD64Y
    £12.84
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    LPC550x/S0x Microcontrollers NXP Semiconductors LPC550x/S0x MCUs offer advanced security, making it ideal for industrial, IoT, and general embedded applications. The LPC550x/S0x Arm Cortex-M33 based microcontrollers feature a CASPER Crypto engine with up to 256KB on-chip flash and up to 96KB of on-chip SRAM. The MCUs also include a PRINCE module for on-the-fly flash encryption/decryption. The LPC550x/S0x includes many timers, including a Code Watchdog, CAN FD, five general-purpose timers, one SCTimer/PWM, one RTC/alarm timer, one 24-bit Multi-Rate Timer (MRT), and a Windowed Watchdog Timer (WWDT). Also provided are many flexible serial communication peripherals, a Programmable Logic Unit (PLU), and a 16-bit 2.0 Msamples/sec ADC capable of simultaneous conversions, comparator, and temperature sensors.
    Product Details
    NXP Semiconductors
    electronicparts-UK/M/771-LPC55S06JBD64Y
    LPC55S06JBD64Y
    10 Items

    Data sheet

    Manufacturer
    NXP
    Series
    LPC55S0x
    Maximum Operating Temperature
    + 105 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Product Type
    ARM Microcontrollers - MCU
    Interface Type
    I2C, I2S, SPI, UART
    Package/Case
    LQFP-64
    Core
    ARM Cortex M33
    Product Category
    ARM Microcontrollers - MCU
    Program Memory Size
    256 kB
    Packaging
    Cut Tape
    RoHS
    Details
    Data RAM Size
    96 kB
    Maximum Clock Frequency
    96 MHz
    ADC Resolution
    16 bit
    Number of I/Os
    45 I/O
    Supply Voltage - Min
    1.8 V
    Supply Voltage - Max
    3.6 V
    Data Bus Width
    32 bit
    Brand
    NXP Semiconductors
    Data RAM Type
    SRAM
    Moisture Sensitive
    Yes
    Number of ADC Channels
    9 Channel
    Number of Timers/Counters
    5 Timer
    Processor Series
    LPC55S0x
    Product
    MCU+DSP+FPUs
    Program Memory Type
    Flash
    Factory Pack Quantity Factory Pack Quantity
    1500
    Subcategory
    Microcontrollers - MCU
    Watchdog Timers
    Watchdog Timer, Windowed
    Part # Aliases
    935408612518
