20 pcs - RS PRO M8 Anti Vibration Mount, Male to Male Bobbin with 16.4kg Compression Load
    • 20 pcs - RS PRO M8 Anti Vibration Mount, Male to Male Bobbin with 16.4kg Compression Load
    • 20 pcs - RS PRO M8 Anti Vibration Mount, Male to Male Bobbin with 16.4kg Compression Load

    20 pcs - RS PRO M8 Anti Vibration Mount, Male to Male Bobbin with 16.4kg Compression Load

    20(Allparts)1893245
    RS PRO
    20 pcs - RS PRO M8 Anti Vibration Mount, Male to Male Bobbin with 16.4kg Compression Load
    £57.84
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description

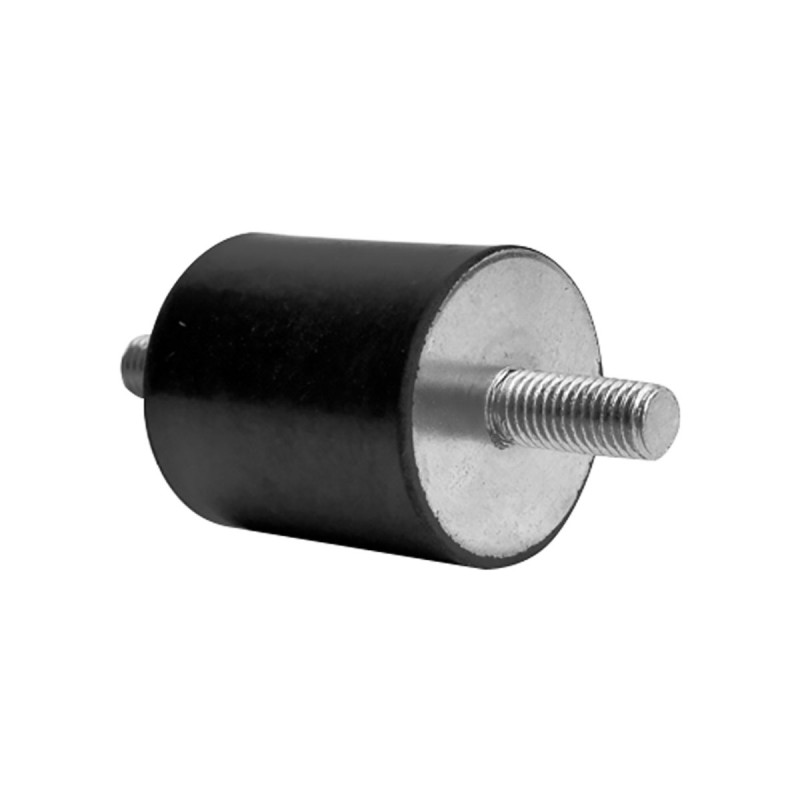

    RS PRO Cylindrical Anti-vibration MountThe RS PRO male to male cylindrical anti-vibration mount has a thread size of M8 and dimensions of 25mm x 30mm (diameter x height). This stud mount is made of natural rubber and zinc plated mild steel. It has a rubber hardness of 45ShoreA.Note: The thread depth B is the same as the thread size, i.e. M3 stud will have a 3mm deep (B) female metal fixing.Features and Benefits• Simple and cost effective• Compression load: 16.4kg• Maximum shear load: 6.6kgCertifications• ANSI/ESD S20.20: 2014• BS EN 61340-5-1: 2007
    Product Details
    RS PRO
    20(Allparts)1893245
    10 Items

    Data sheet

    Manufacturer
    RS PRO
    Diameter
    25mm
    Material
    Natural Rubber
    A-Supplier
    Allparts-UK/15/R-12
    Thread Size
    M8
    Anti Vibration Mount Type
    Male to Male Bobbin
    Metalwork
    Zinc Plated Steel
    Compression Load
    16.4kg
    Shearing Load
    6.6kg
    Shore Hardness
    45 Shore A
