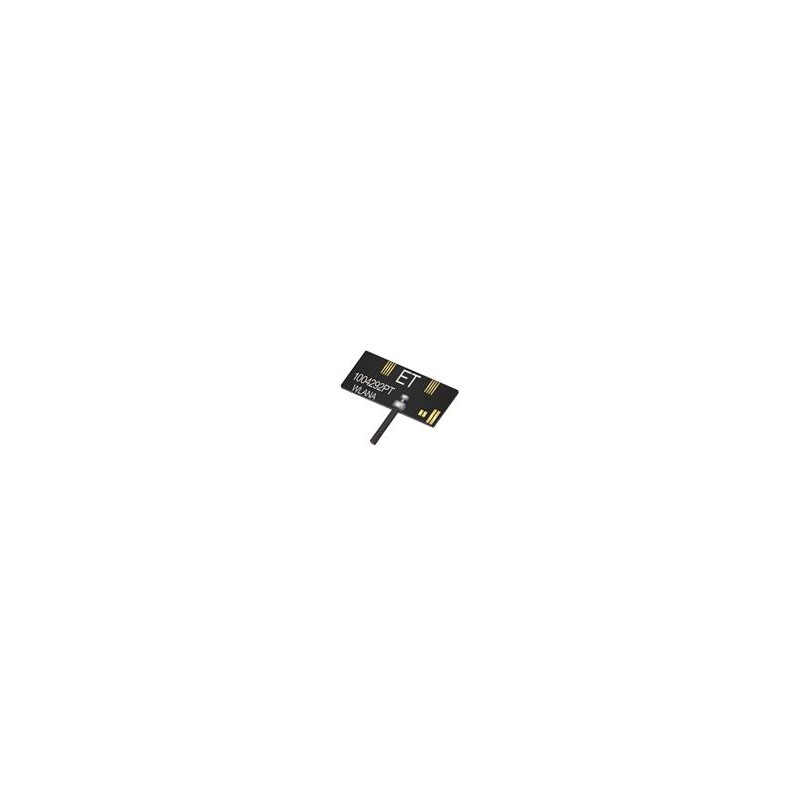

    10 pcs : 1004292PT-AA10L0100 - Antennas Tunable 5GHz PCB 100mm Cable MHF Connector
    • 10 pcs : 1004292PT-AA10L0100 - Antennas Tunable 5GHz PCB 100mm Cable MHF Connector

    10 pcs : 1004292PT-AA10L0100 - Antennas Tunable 5GHz PCB 100mm Cable MHF Connector

    10(electronicparts)5811004292PTAA1100
    10 pcs : 1004292PT-AA10L0100 - Antennas Tunable 5GHz PCB 100mm Cable MHF Connector
    £50.00
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    2.4GHz/5GHz & Wi-Fi 6GHz Antennas KYOCERA AVX 2.4GHz / 5GHz and Wi-Fi® 6GHz Antennas are designed for a wide array of applications. The antennas are available in a variety of designs, including chip, embedded, flat, and stamped. These antennas utilize isolated magnetic dipole (IMD) technology to deliver a unique size and performance combination. Applications for KYOCERA AVX 2.4GHz / 5GHz and Wi-Fi 6GHz Antennas include consumer, industrial, medical, and automotive that use standards such as Wi-Fi, BLUETOOTH®, ISM, and ZigBee®.
    Product Details
    KYOCERA AVX
    10(electronicparts)5811004292PTAA1100
    1004292PT-AA10L0100
    10 Items

    Data sheet

    Manufacturer
    KYOCERA AVX
    Impedance
    50 Ohms
    Width
    8 mm
    Height
    0.4 mm
    Application
    Embedded Design, POS, Headsets, Tablets, Gateway, Access Point, Handheld, Telematics, Tracking, Healthcare, M2M, Smart Grid, OBD-II
    Length
    22 mm
    IP rating
    -
    Series
    1004292PT
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    Adhesive Mount
    Type
    Passive Antenna
    Power Rating
    2 W
    Product Type
    2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee
    Cable Type
    100 mm RF1.13
    Maximum Frequency
    5.825 GHz
    Minimum Frequency
    5.15 GHz
    Termination Style
    Connector
    Gain
    4.8 dBi
    Product Category
    Antennas
    Style
    T-Bar Flex
    Packaging
    Bulk
    RoHS
    Details
    Brand
    KYOCERA AVX
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    1000
    Subcategory
    Antennas
    VSWR
    2.01
    Antenna Connector Type
    SMA Male
    Protocol - WiFi - 802.11
    WiFi, WLAN
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth
    Number of Bands
    1 Band
    Centre Frequency
    5.4875 GHz
    Protocol - ANT, Thread, Zigbee - 802.15.4
    802.15.4 (ANT, Thread, Zigbee)
    Mechanical Style
    PCB Trace
    Electrical Type
    Embedded
