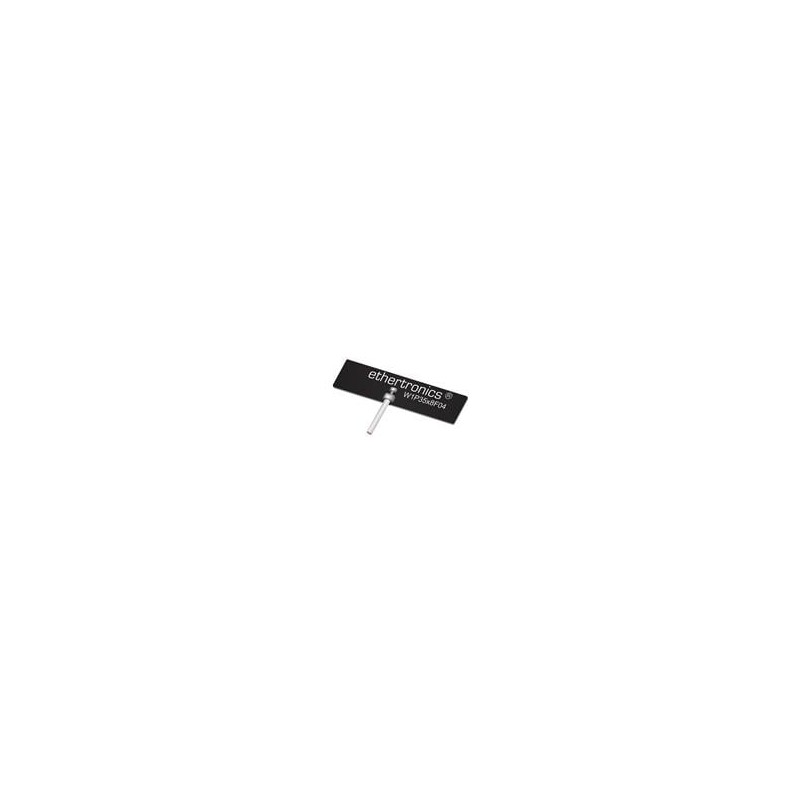

    10 pcs : W1P35X8F04-U100D3B0T - Antennas 2.4GHz/BT PCB 100mm Cable MHF Connector Foam at backside
    • 10 pcs : W1P35X8F04-U100D3B0T - Antennas 2.4GHz/BT PCB 100mm Cable MHF Connector Foam at backside

    10 pcs : W1P35X8F04-U100D3B0T - Antennas 2.4GHz/BT PCB 100mm Cable MHF Connector Foam at backside

    10(electronicparts)581135X8F04U10D3B0T
    10 pcs : W1P35X8F04-U100D3B0T - Antennas 2.4GHz/BT PCB 100mm Cable MHF Connector Foam at backside
    £65.75
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    WLAN/BLUETOOTH/ZigBee Tunable Embedded Antennas KYOCERA AVX WLAN / BLUETOOTH® / ZigBee® Tunable Embedded PCB Antennas offer high functionality and performance for smaller and thinner designs. The 2.4GHz / 5GHz dual-band antennas utilize patented isolated magnetic dipole (IMD) technology to deliver a unique size and performance combination. This technology provides superior RF field containment, resulting in less interaction with surrounding components. These antennas have unique features, enabling limited-range RF tuning by leaving P1 - P6 and C1 - C2 connected via a solder bridge or disconnected with a cut to the trace. KYOCERA AVX Tunable Embedded PCB Antennas are ideal for smart homes, digital signs, automotive, Internet of Things (IoT), and other applications.
    Product Details
    KYOCERA AVX
    10(electronicparts)581135X8F04U10D3B0T
    W1P35X8F04-U100D3B0T
    10 Items

    Data sheet

    Manufacturer
    KYOCERA AVX
    Impedance
    50 Ohms
    Width
    8 mm
    Height
    0.4 mm
    Cable length
    150 mm
    Application
    Agriculture, Smart Home, Healthcare, Automotive, Digital Signage
    Length
    35 mm
    Bandwidth
    80 Hz
    Frequency
    -
    Series
    W1 Family
    Mounting Style
    Adhesive Mount
    Product Type
    2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee
    Maximum Frequency
    2.48 GHz
    Minimum Frequency
    2.4 GHz
    Termination Style
    Connector
    Gain
    2.8 dBi
    Frequency Range
    2.4 GHz to 2.48 GHz
    Product Category
    Antennas
    Style
    T-Bar Flex
    Packaging
    Bulk
    RoHS
    Details
    Brand
    KYOCERA AVX
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    400
    Subcategory
    Antennas
    Antenna Connector Type
    U.FL
    Protocol - WiFi - 802.11
    WiFi, WLAN
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth
    Number of Bands
    1 Band
    Centre Frequency
    2.44 GHz
    Protocol - ANT, Thread, Zigbee - 802.15.4
    802.15.4 (ANT, Thread, Zigbee)
    Mechanical Style
    PCB Trace
    Electrical Type
    Embedded
