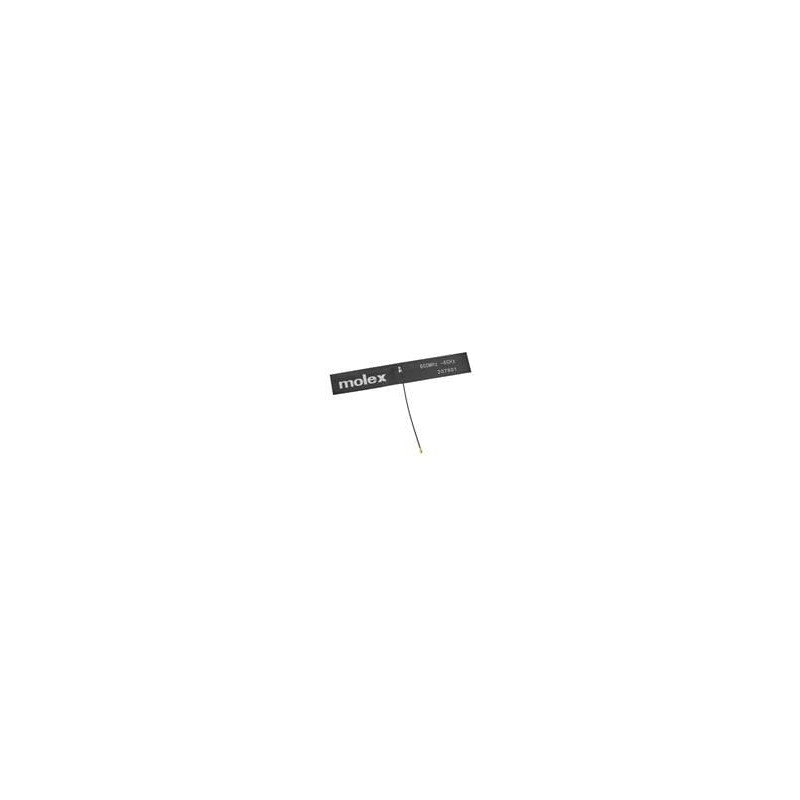

10 pcs : 207901-9300 - Antennas 600-6000MHz auto flexible antenna 300mm
    • 10 pcs : 207901-9300 - Antennas 600-6000MHz auto flexible antenna 300mm

    10 pcs : 207901-9300 - Antennas 600-6000MHz auto flexible antenna 300mm

    10(electronicparts)5382079019300
    MOLEX
    10 pcs : 207901-9300 - Antennas 600-6000MHz auto flexible antenna 300mm
    £52.75
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Automotive-Grade Monopole Low-Profile Antennas Molex Automotive-Grade Wi-Fi6E, UWB, and Cellular Monopole Low-Profile Antennas offer high RF performance and reliability for in-vehicle connectivity applications. These antennas are available in various configurations, have double-sized adhesive on the back and a poly-flexible top, and connect with a micro-coaxial cable. Upon removal of its tape liner, the antenna can be applied anywhere within the device chassis. The I-PEX connector at the extreme end of the antenna is secured to the application’s radio. These dual-band antennas have up to 5.3dBi peak gain and 80% efficiency, providing strong and stable wireless connections. Molex Automotive-Grade Wi-Fi6E, UWB, and Cellular Monopole Low-Profile Antennas applications include automotive, Wi-Fi/BLUETOOTH® devices, cellular connectivity, commercial vehicles, and networking devices.
    Product Details
    MOLEX
    10(electronicparts)5382079019300
    207901-9300
    10 Items

    Data sheet

    Manufacturer
    MOLEX
    Impedance
    50 Ohms
    Width
    25 mm
    Cable length
    300 mm
    Length
    147 mm
    Polarisation
    Linear
    Series
    207901
    Maximum Operating Temperature
    + 105 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    Adhesive
    Type
    Flexible Antenna
    Power Rating
    2 W
    Product Type
    Cellular Antennas - GSM, LTE, 2G/3G/4G/5G
    Cable Type
    1.13 mm
    Maximum Frequency
    6 GHz
    Minimum Frequency
    600 MHz
    Termination Style
    Connector
    Gain
    2.2 dBi, 4.3 dBi, 4.6 dBi
    Frequency Range
    600 MHz to 6 GHz
    Product Category
    Antennas
    Style
    T-Bar Flex
    RoHS
    Details
    Brand
    Molex
    Product
    Vehicle Antennas
    Factory Pack Quantity Factory Pack Quantity
    1
    Subcategory
    Antennas
    Part # Aliases
    2079019300 02079019300
    Antenna Connector Type
    MHF-1
    Number of Bands
    3 Band
    Mechanical Style
    PCB Trace
    Electrical Type
    Monopole
