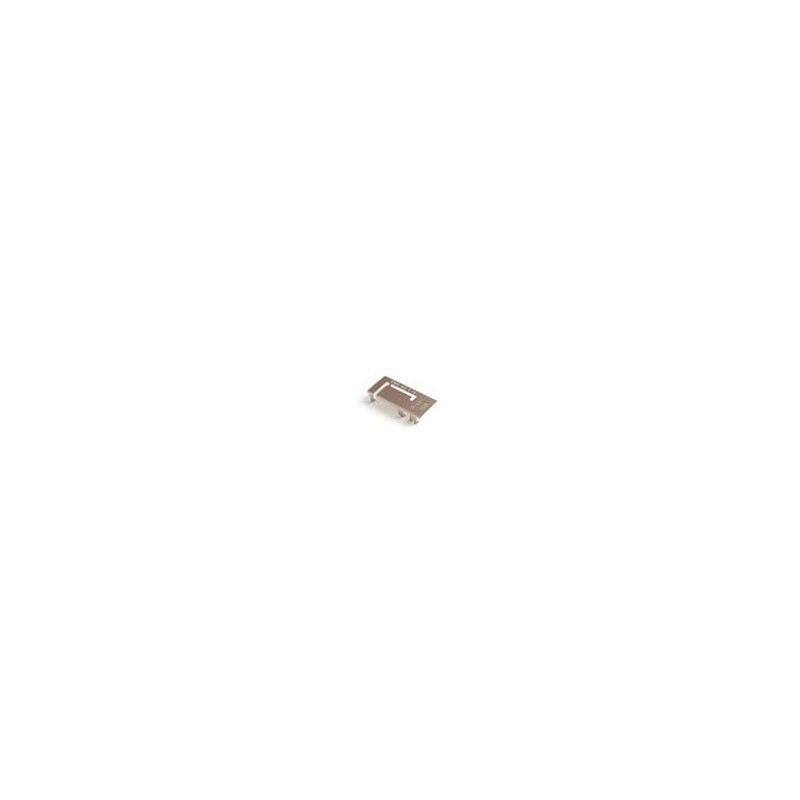

    10 pcs : PRO-OB-536 - Antennas 2.4 GHZ ONBOARD WLAN
    • 10 pcs : PRO-OB-536 - Antennas 2.4 GHZ ONBOARD WLAN

    10 pcs : PRO-OB-536 - Antennas 2.4 GHZ ONBOARD WLAN

    10(electronicparts)815PROOB536
    ABRACON
    10 pcs : PRO-OB-536 - Antennas 2.4 GHZ ONBOARD WLAN
    £50.25
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    OnBoard Stamped Metal Antennas Abracon OnBoard Stamped Metal Antennas offer high efficiency appropriate for smaller devices with limited internal space. Abracon OnBoard Stamped Metal Antennas are low-profile, high-performance antennas that can deliver a cost-effective solution. These surface mount antennas' broad range of applications includes the Internet of Things (IoT), machine-to-machine (M2M), telemetry, industrial, and more.
    Product Details
    ABRACON
    10(electronicparts)815PROOB536
    PRO-OB-536
    10 Items

    Data sheet

    Manufacturer
    ABRACON
    Impedance
    50 Ohms
    Width
    6.6 mm
    Height
    2.5 mm
    Cable length
    -
    Application
    M2M, Telemetry, Wireless RC, Personal Area Network, Industrial/Commerical Equipment
    Length
    14.2 mm
    Bandwidth
    -
    Frequency
    2.4 GHz, 2.5 GHz
    Polarisation
    Mixed Linear
    Maximum Operating Temperature
    + 125 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    PCB Mount
    Type
    On-Board
    Product Type
    2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee
    Cable Type
    -
    Maximum Frequency
    2.5 GHz
    Minimum Frequency
    2.4 GHz
    Termination Style
    SMD/SMT
    Gain
    1.7 dBi, 2.7 dBi
    Frequency Range
    -
    Product Category
    Antennas
    Style
    Metal
    Packaging
    Cut Tape
    RoHS
    Details
    Brand
    ABRACON
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    1000
    Subcategory
    Antennas
    Antenna Connector Type
    -
    Protocol - WiFi - 802.11
    WiFi
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth, BLE
    Protocol - Sub GHz
    ISM
    Number of Bands
    2 Band
    Centre Frequency
    2.4 GHz, 2.5 GHz
    Protocol - ANT, Thread, Zigbee - 802.15.4
    802.15.4 (ANT, Thread, Zigbee)
    Mechanical Style
    Stamped
    Electrical Type
    PIFA
    Ground Plane Size
    47 mm x 17 mm
