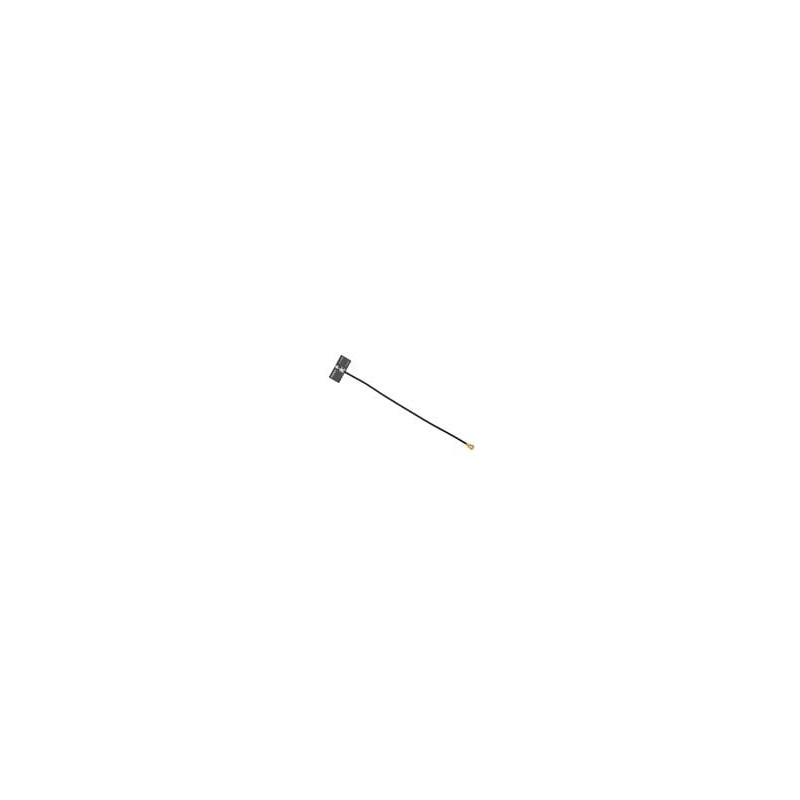

10 pcs : 211996-9200 - Antennas 5.8-8.5GHz Auto Flexible Antenna 200mm
    • 10 pcs : 211996-9200 - Antennas 5.8-8.5GHz Auto Flexible Antenna 200mm

    10 pcs : 211996-9200 - Antennas 5.8-8.5GHz Auto Flexible Antenna 200mm

    10(electronicparts)5382119969200
    MOLEX
    10 pcs : 211996-9200 - Antennas 5.8-8.5GHz Auto Flexible Antenna 200mm
    £50.25
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Automotive-Grade Monopole Low-Profile Antennas Molex Automotive-Grade Wi-Fi6E, UWB, and Cellular Monopole Low-Profile Antennas offer high RF performance and reliability for in-vehicle connectivity applications. These antennas are available in various configurations, have double-sized adhesive on the back and a poly-flexible top, and connect with a micro-coaxial cable. Upon removal of its tape liner, the antenna can be applied anywhere within the device chassis. The I-PEX connector at the extreme end of the antenna is secured to the application’s radio. These dual-band antennas have up to 5.3dBi peak gain and 80% efficiency, providing strong and stable wireless connections. Molex Automotive-Grade Wi-Fi6E, UWB, and Cellular Monopole Low-Profile Antennas applications include automotive, Wi-Fi/BLUETOOTH® devices, cellular connectivity, commercial vehicles, and networking devices.
    Product Details
    MOLEX
    10(electronicparts)5382119969200
    211996-9200
    10 Items

    Data sheet

    Manufacturer
    MOLEX
    Impedance
    50 Ohms
    Width
    7.6 mm
    Cable length
    200 mm
    Length
    16.4 mm
    Polarisation
    Linear
    Series
    211996
    Maximum Operating Temperature
    + 105 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    Adhesive
    Type
    Flexible Antenna
    Power Rating
    2 W
    Product Type
    2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee
    Cable Type
    1.13 mm
    Maximum Frequency
    8.5 GHz
    Minimum Frequency
    5.8 GHz
    Termination Style
    Connector
    Gain
    5 dBi, 5.7 dBi
    Frequency Range
    5.8 GHz to 8.5 GHz
    Product Category
    Antennas
    Style
    T-Bar Flex
    RoHS
    Details
    Brand
    Molex
    Product
    Vehicle Antennas
    Factory Pack Quantity Factory Pack Quantity
    1
    Subcategory
    Antennas
    Part # Aliases
    2119969200 02119969200
    Antenna Connector Type
    MHF-1
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth
    Number of Bands
    2 Band
    Protocol - ANT, Thread, Zigbee - 802.15.4
    802.15.4 (ANT, Thread, Zigbee)
    Mechanical Style
    PCB Trace
