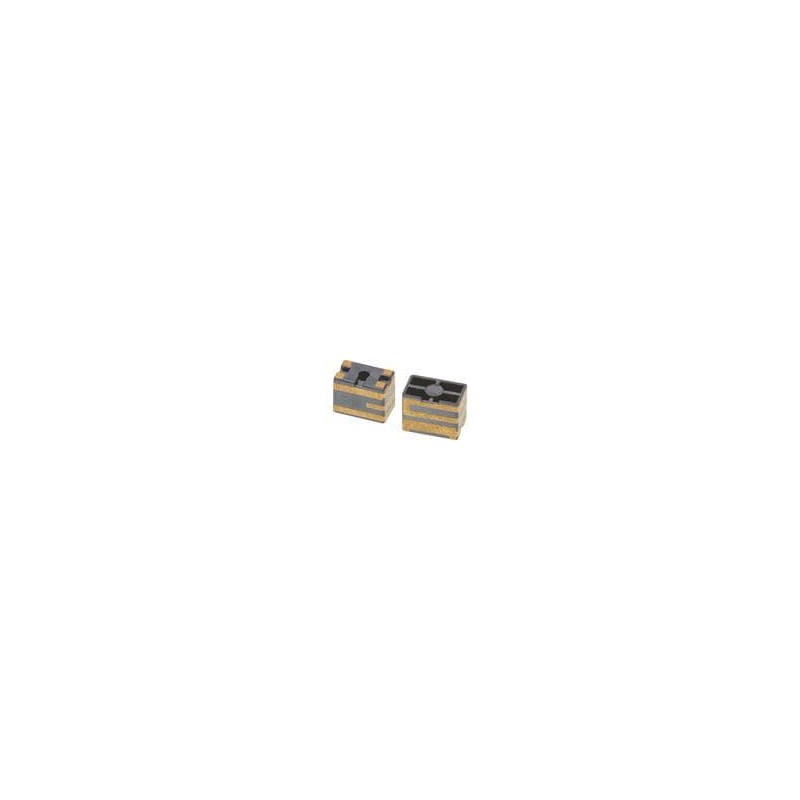

    10 pcs : 146175-0001 - Antennas 2.4/5GHz SMTOnGround MID Chip Antenna
    • 10 pcs : 146175-0001 - Antennas 2.4/5GHz SMTOnGround MID Chip Antenna

    10 pcs : 146175-0001 - Antennas 2.4/5GHz SMTOnGround MID Chip Antenna

    10(electronicparts)5381461750001
    MOLEX
    10 pcs : 146175-0001 - Antennas 2.4/5GHz SMTOnGround MID Chip Antenna
    £38.06
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    2.4GHz / 5GHz MID Chip Antenna Molex 146175 series Molded Interconnect Device (MID) Chip Antenna requires no ground-place clearance and features a frequency of 2.4GHz / 5GHz. This Wi-Fi®-ready Molex MID chip antenna enables wireless device makers to achieve cost-effective designs with higher levels of product integration and fewer components. The gold over nickel traces on the Molex 146175 MID antenna act as transducers that convert unguided electromagnetic waves to guided electromagnetic waves and vice versa. The Laser Direct Structuring (LDS) formed circuitry yields high, consistent RF performance. And the MID housing withstands high reflow temperatures during assembly processing.
    Product Details
    MOLEX
    10(electronicparts)5381461750001
    146175-0001
    10 Items

    Data sheet

    Manufacturer
    MOLEX
    Impedance
    50 Ohms
    Width
    3.07 mm
    Cable length
    -
    Length
    5 mm
    Polarisation
    Linear
    Series
    146175
    For Use With
    WiFi
    Maximum Operating Temperature
    + 125 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    PCB Mount
    Type
    Passive Antenna
    Power Rating
    2 W
    Product Type
    2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee
    Technology
    WiFi
    Cable Type
    -
    Maximum Frequency
    5.85 GHz
    Minimum Frequency
    2.4 GHz
    Termination Style
    SMD/SMT
    Gain
    3 dB, 4.2 dB
    Product Category
    Antennas
    Style
    Chip
    Packaging
    Cut Tape
    RoHS
    Details
    Brand
    Molex
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    1650
    Subcategory
    Antennas
    Unit Weight
    280 mg
    Part # Aliases
    1461750001 01461750001
    Antenna Connector Type
    -
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth, BLE
    Protocol - Sub GHz
    IoT, ISM, U-NII
    Number of Bands
    2 Band
    Centre Frequency
    2.45 GHz, 5.5 GHz
    Protocol - ANT, Thread, Zigbee - 802.15.4
    802.15.4 (ANT, Thread, Zigbee), 802.16
    Mechanical Style
    Chip
