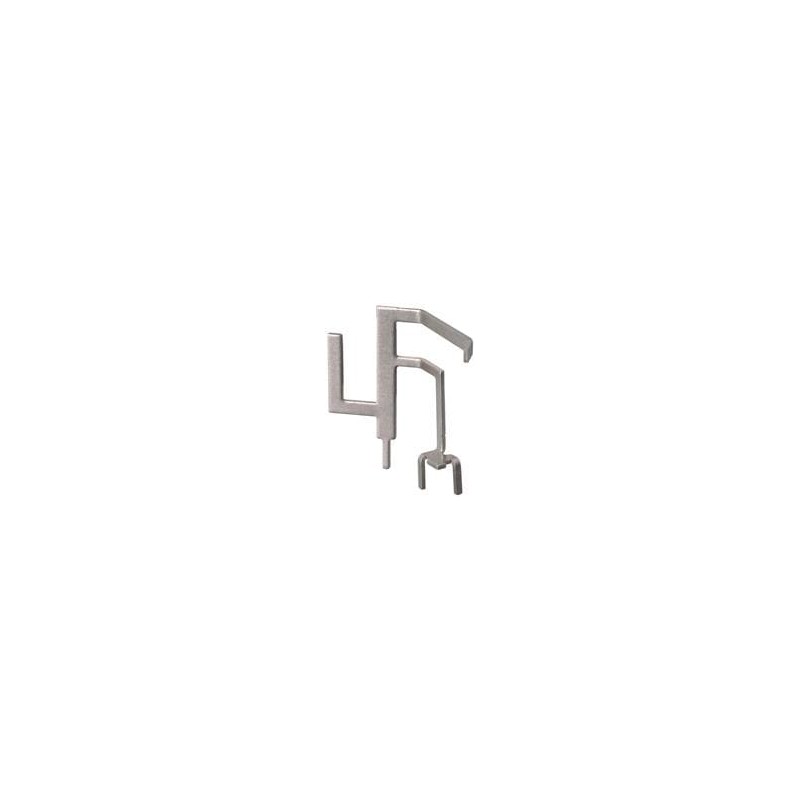

10 pcs : ANT-W63-MSA-TH1 - Antennas 2.4/5/6 GHz WIFI6/6E antenna, stamped metal, through hole mount
    • 10 pcs : ANT-W63-MSA-TH1 - Antennas 2.4/5/6 GHz WIFI6/6E antenna, stamped metal, through hole mount

    10 pcs : ANT-W63-MSA-TH1 - Antennas 2.4/5/6 GHz WIFI6/6E antenna, stamped metal, through hole mount

    10(Allparts)712ANTW63MSATH1
    10 pcs : ANT-W63-MSA-TH1 - Antennas 2.4/5/6 GHz WIFI6/6E antenna, stamped metal, through hole mount
    £22.36
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    MSA Stamped Metal Antennas TE Connectivity / Linx Technologies MSA Stamped Metal Antennas exhibit excellent performance in a compact size and are designed for through-hole mounting directly to a printed circuit board (PCB). The ANT-W63-MSA-TH1 antenna provides superior performance in Wi-Fi® 6 / Wi-Fi 6E applications in the 2.4GHz, 5GHz, and 6GHz bands, while the ANT-2.4-MSA-TH1 is suited for 2.4GHz ISM applications, including BLUETOOTH® and ZigBee®, as well as single-band Wi-Fi. TE Connectivity / Linx Technologies MSA Stamped Metal Antennas feature an omnidirectional radiation pattern, a low profile, and reflow- or hand-solder assembly.
    Product Details
    10(Allparts)712ANTW63MSATH1
    ANT-W63-MSA-TH1
    10 Items

    Data sheet

    Manufacturer
    TE Connectivity
    Width
    17.2 mm
    Height
    9.8 mm
    Frequency
    2.4 GHz to 2.5 GHz, 5.15 GHz to 5.895 GHz, 5.95 GHz to 7.125 GHz
    Wavelength
    1/4 Wave
    Polarisation
    Linear
    Series
    MSA
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    PCB Mount
    Power Rating
    1 W
    Product Type
    2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee
    Maximum Frequency
    7.125 GHz
    Minimum Frequency
    2.4 GHz
    Termination Style
    Pin
    Gain
    3.5 dB, 3.8 dB
    Product Category
    Antennas
    Packaging
    Tray
    RoHS
    Details
    Brand
    TE Connectivity / Linx Technologies
    Factory Pack Quantity Factory Pack Quantity
    135
    Subcategory
    Antennas
    Number of Bands
    3 Band
    Electrical Type
    Monopole
