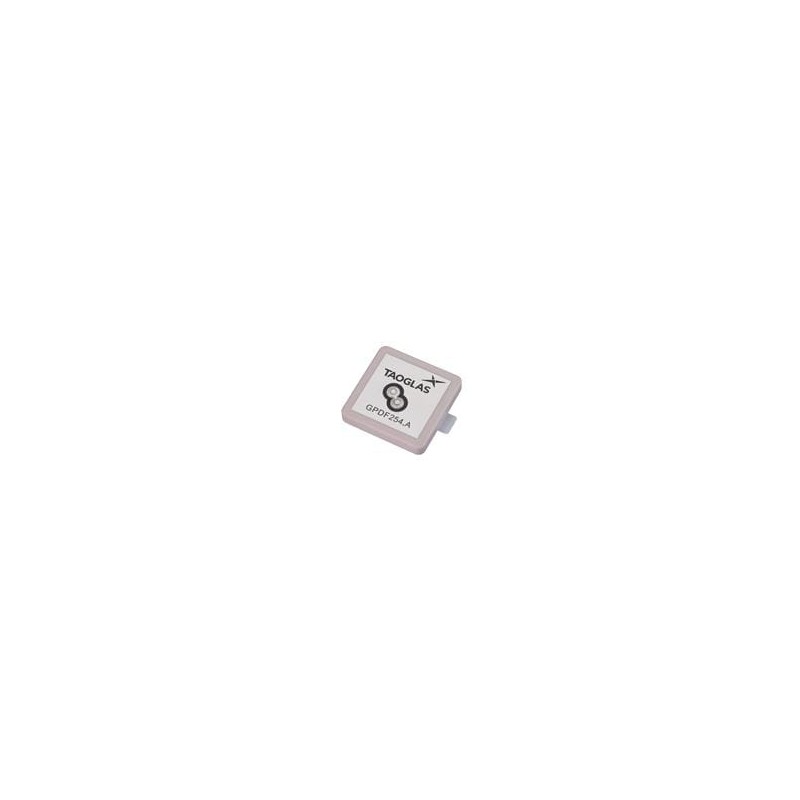

    1 pcs : GPDF254.A - Antennas GPS/GLONASS/BeiDou/Galileo Dual Feed Single Patch Antenna 25*24*4mm
    • 1 pcs : GPDF254.A - Antennas GPS/GLONASS/BeiDou/Galileo Dual Feed Single Patch Antenna 25*24*4mm

    1 pcs : GPDF254.A - Antennas GPS/GLONASS/BeiDou/Galileo Dual Feed Single Patch Antenna 25*24*4mm

    Allparts-UK/M/960-GPDF254.A
    Taoglas
    £28.64
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    GPDF254.A Passive Dual Pin GNSS Patch Antenna Taoglas GPDF254.A Passive Dual Pin GNSS Patch Antenna is a high-performance, single-band passive GNSS L1 antenna designed to provide positional accuracy on the full GNSS L1 spectrum. The component features a dual-feed, passive patch design which makes it ideal for next-generation GNSS devices that require excellent positional accuracy in a small form factor. The patch antenna, by means of a double resonance design, offers a wide-band operation over GNSS systems including GPS (L1), GLONASS (G1), Galileo (E1), and BeiDou(B1). The 25mm patch uses a dual-feed configuration to obtain an optimal axial ratio. When used on the base and/or the rover as part of an RTK configuration, the GPDF254.A can achieve genuine cm-level accuracy with proven results. The GPDF254.A is manufactured and tested in a TS16949 first-tier automotive-approved facility.
    Product Details
    Taoglas
    Allparts-UK/M/960-GPDF254.A
    GPDF254.A
    10 Items

    Data sheet

    Manufacturer
    Taoglas
    Impedance
    50 Ohms
    Width
    25 mm
    Height
    4 mm
    Application
    High Accuracy Positioning, Navigation Systems, UAVs, Robotics, Autonomous Vehicles, Transportation, Telematics, Precision Agriculture, RTK Systems
    Length
    25 mm
    Bandwidth
    22 MHz
    Polarisation
    RHCP
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    Adhesive Mount
    Type
    Passive Antenna
    Product Type
    GNSS Antennas - GPS, GLONASS, Galileo, Beidou
    Cable Type
    -
    Maximum Frequency
    1.602 GHz
    Minimum Frequency
    151 MHz
    Termination Style
    Pin, Dual
    Gain
    1.4 dBi, 3.1 dBi, 1.7 dBi
    Product Category
    Antennas
    Style
    Ceramic
    Packaging
    Tray
    RoHS
    Details
    Brand
    Taoglas
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    100
    Subcategory
    Antennas
    REACH - SVHC
    Details
    Antenna Connector Type
    -
    Protocol - Sub GHz
    -
    Protocol - GPS, GLONASS
    BEIDOU, Galileo, GLONASS, GPS
    Number of Bands
    3 Band
    Centre Frequency
    1.561 GHz, 1.575 GHz, 1.602 GHz
    Mechanical Style
    Patch
