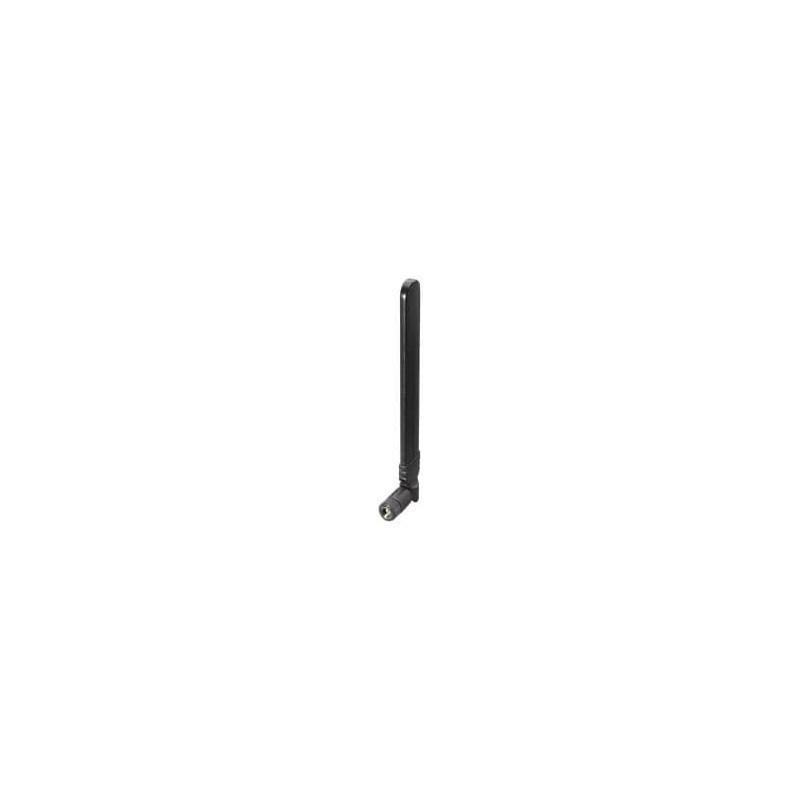

1 pcs : ANT-5GWWS4-SMA - Antennas 5G Cellular, Sub-6, LTE, NB-IoT, Cat-M1, 617MHz-5GHz Bandwidth, Hinged Blade, SMA Male Connect
    • 1 pcs : ANT-5GWWS4-SMA - Antennas 5G Cellular, Sub-6, LTE, NB-IoT, Cat-M1, 617MHz-5GHz Bandwidth, Hinged Blade, SMA Male Connect

    1 pcs : ANT-5GWWS4-SMA - Antennas 5G Cellular, Sub-6, LTE, NB-IoT, Cat-M1, 617MHz-5GHz Bandwidth, Hinged Blade, SMA Male Connect

    Allparts-UK/M/712-ANT-5GWWS4-SMA
    £17.60
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    5GW Sub-6 5G Low- and Mid-Band Antennas TE Connectivity / Linx Technologies 5GW Sub-6 5G Low- and Mid-Band Antennas are dipole, blade-style antennas for 5G New Radio, LTE, and cellular Internet of Things (LTE-M, NB-IoT) applications. TE Connectivity / Linx Technologies 5GWWS2 Antennas excel in the 617MHz to 960MHz low band and in the 2496MHz to 2690MHz and 3300MHz to 5000MHz ranges for Citizens Broadband Radio Service (CBRS) private networking, 4.9GHz public safety, and emerging 2.5GHz and C-band applications. 5GWWS1 excels in the 617MHz to 960MHz low band and in the 1710MHz to 2690MHz and 3300MHz to 5000MHz mid-band ranges. The 5GWWS4 antennas are ideal for the 698MHz to 803MHz and 3300MHz to 3800MHz ranges.
    Product Details
    Allparts-UK/M/712-ANT-5GWWS4-SMA
    ANT-5GWWS4-SMA
    10 Items

    Data sheet

    Manufacturer
    TE Connectivity
    Impedance
    50 Ohms
    Wavelength
    1 / 2 Wave
    Polarisation
    Linear
    Series
    5GW
    Maximum Operating Temperature
    + 65 C
    Minimum Operating Temperature
    - 20 C
    Product Type
    Cellular Antennas - GSM, LTE, 2G/3G/4G/5G
    Maximum Frequency
    5 GHz
    Minimum Frequency
    617 MHz
    Gain
    5.2 dBi
    Frequency Range
    617 MHz to 5 GHz
    Product Category
    Antennas
    Packaging
    Bulk
    RoHS
    Details
    Brand
    TE Connectivity / Linx Technologies
    Product
    Indoor Antennas
    Factory Pack Quantity Factory Pack Quantity
    400
    Subcategory
    Antennas
    Number of Bands
    10 Band
    Electrical Type
    Dipole
