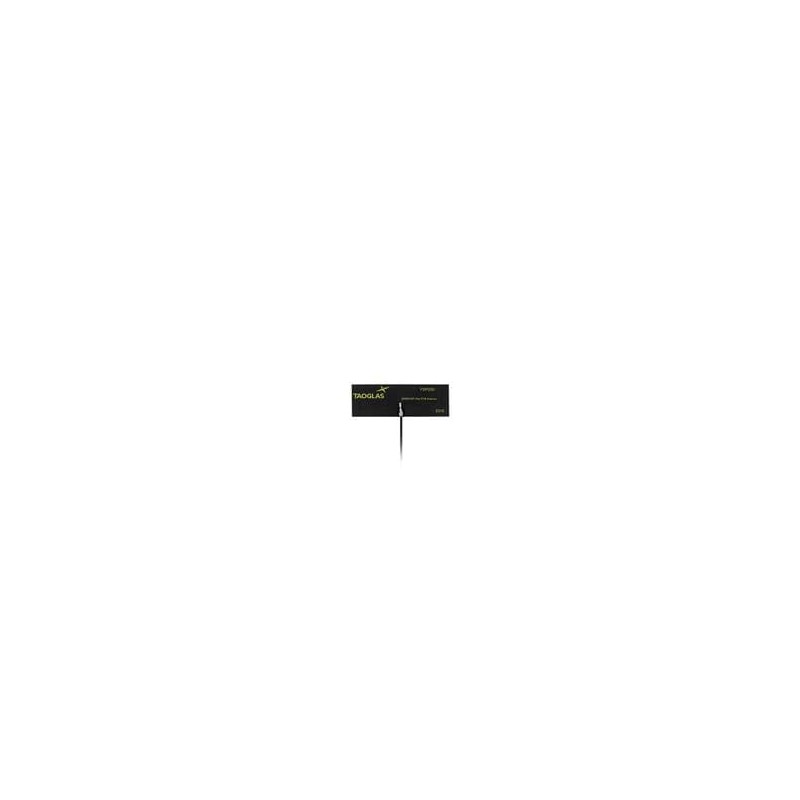

    1 pcs : FXP050.07.0100C - Antennas GNSS/Wifi flex ANTENNA
    • 1 pcs : FXP050.07.0100C - Antennas GNSS/Wifi flex ANTENNA

    1 pcs : FXP050.07.0100C - Antennas GNSS/Wifi flex ANTENNA

    Allparts-UK/M/960-FXP050.07.0100C
    Taoglas
    £12.44
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    GNSS/Wi-Fi® Flex PCB Antennas Taoglas GNSS/Wi-Fi® Flex PCB Antennas feature an embedded GNSS and Wi-Fi flexible antenna designed for modern Wi-Fi networks. The antennas combine Wi-Fi and GNSS functionality in one compact and flexible PCB, which saves space and is easy to install. Taoglas GNSS/Wi-Fi Flex PCB Antennas cover Wi-Fi 2.4/5.8/7.125GHz bands and GNSS 1560MHz to 1610MHz frequencies. The antennas offer 100mm of 1.37mm cable and I-PEX MHF® I connectors. The flex PCB antennas are RoHS/REACH compliant and ideal for asset tracking, smart homes, telemedicine, gaming, and navigation applications.
    Product Details
    Taoglas
    Allparts-UK/M/960-FXP050.07.0100C
    FXP050.07.0100C
    10 Items

    Data sheet

    Manufacturer
    Taoglas
    Impedance
    50 Ohms
    Width
    18 mm
    Height
    0.2 mm
    Cable length
    100 mm
    Application
    Asset Tracking Systems, Gaming devices, Navigation Devices, Smart Home Devices, Telemedicine Devices
    Length
    53 mm
    Polarisation
    Linear
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    Adhesive
    Type
    PCB Antenna
    Power Rating
    2 W
    Product Type
    Multiprotocol Antennas
    Cable Type
    1.37mm Coax
    Maximum Frequency
    7.125 GHz
    Minimum Frequency
    1.565 GHz
    Termination Style
    Connector
    Gain
    2.14 dB
    Frequency Range
    1565 MHz to 1586 MHz, 1596 MHz to 1610 MHz, 1559 MHz to 1565 MHz, 2.4 GHz to 2.5 GHz, 5.15 GHz to 5.85 GHz, 5.95 GHz to 7.125 GHz
    Product Category
    Antennas
    Packaging
    Bulk
    RoHS
    Details
    Brand
    Taoglas
    Product
    Outdoor Antennas
    Factory Pack Quantity Factory Pack Quantity
    100
    Subcategory
    Antennas
    Unit Weight
    2 g
    VSWR
    1.5
    Antenna Connector Type
    I-PEX MHFI
    Protocol - WiFi - 802.11
    WiFi
    Protocol - GPS, GLONASS
    GNSS
    Number of Bands
    6 Band
    Centre Frequency
    1.562 GHz, 1.575 GHz, 1.603 GHz, 2.45 GHz, 5.5 GHz, 6.525 GHz
    Mechanical Style
    PCB
