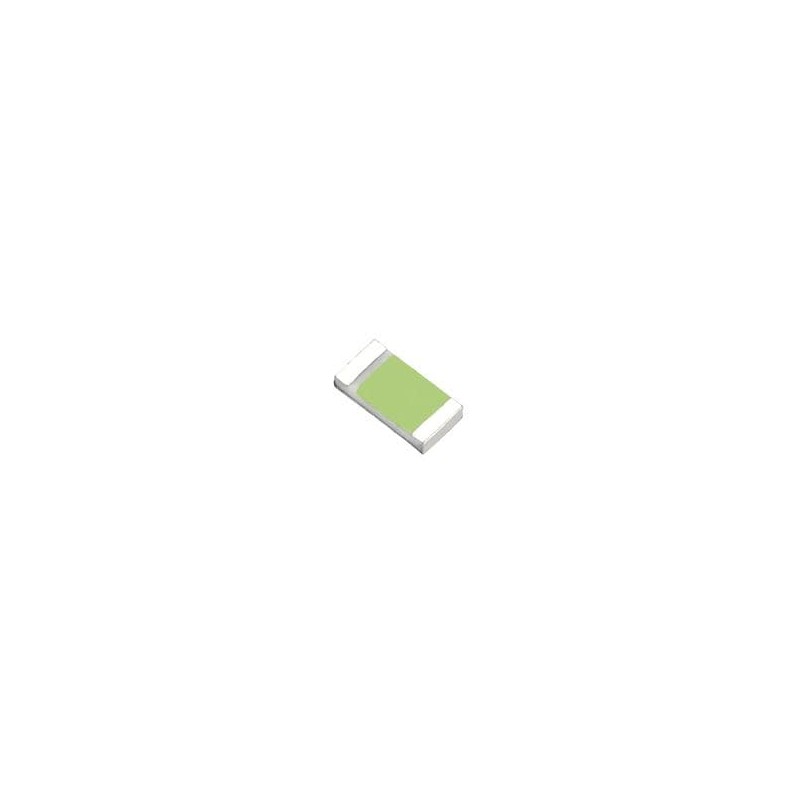

    1 pcs : GGBLA.01.A - Antennas Unifier GGBLA.01 GPS/GLONASS/Galileo/BeiDou Ceramic Loop Antenna 3.2*1.6*0.5mm
    • 1 pcs : GGBLA.01.A - Antennas Unifier GGBLA.01 GPS/GLONASS/Galileo/BeiDou Ceramic Loop Antenna 3.2*1.6*0.5mm

    1 pcs : GGBLA.01.A - Antennas Unifier GGBLA.01 GPS/GLONASS/Galileo/BeiDou Ceramic Loop Antenna 3.2*1.6*0.5mm

    Allparts-UK/M/960-GGBLA.01.A
    Taoglas
    £21.51
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Unifier GGBLA.01.A Loop Antenna Taoglas Unifier GGBLA.01.A Loop Antenna is a 3.2 x 1.6 x 0.5mm omni-directional ceramic SMD antenna for GPS/GLONASS/BEIDOU applications. As part of the Unifier antenna series, the GGBLA.01.A antenna's wide bandwidth enables stable, high efficiency reception on all three GPS, Glonass, and Beidou bands from 1555MHz to 1602MHz. The GGBLA.01.A achieves efficiencies of 64% to 85%. With a peak gain of 3.3dBi, the GGBLA.01.A Loop Antenna's gain performance places it in range of much larger 15mm to 18mm patch antennas. The size and performance characteristics of the GGBLA.01.A Loop Antenna make it especially well-suited for small-sized automotive navigation or position tracking systems and hand-held devices when GNSS function is needed.
    Product Details
    Taoglas
    Allparts-UK/M/960-GGBLA.01.A
    GGBLA.01.A
    10 Items

    Data sheet

    Manufacturer
    Taoglas
    Impedance
    50 Ohms
    Width
    1.6 mm
    Height
    0.5 mm
    Application
    Navigation, Position Tracking System
    Length
    3.2 mm
    Polarisation
    Linear
    Series
    Unifier
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    PCB Mount
    Type
    Passive Antenna
    Product Type
    GNSS Antennas - GPS, GLONASS, Galileo, Beidou
    Cable Type
    -
    Maximum Frequency
    1.608 GHz
    Minimum Frequency
    1.561 GHz
    Termination Style
    SMD/SMT
    Gain
    3.2 dBi, 2.6 dBi, 2.8 dBi
    Product Category
    Antennas
    Style
    Chip
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Taoglas
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    6000
    Subcategory
    Antennas
    Unit Weight
    100 mg
    REACH - SVHC
    Details
    VSWR
    21, 21, 21
    Antenna Connector Type
    -
    Protocol - Sub GHz
    -
    Protocol - GPS, GLONASS
    BEIDOU, Galileo, GLONASS, GPS
    Number of Bands
    3 Band
    Centre Frequency
    1.561 GHz, 1.57542 GHz, 1.602 GHz
    Mechanical Style
    Loop
    Ground Plane Size
    80 mm x 40 mm
