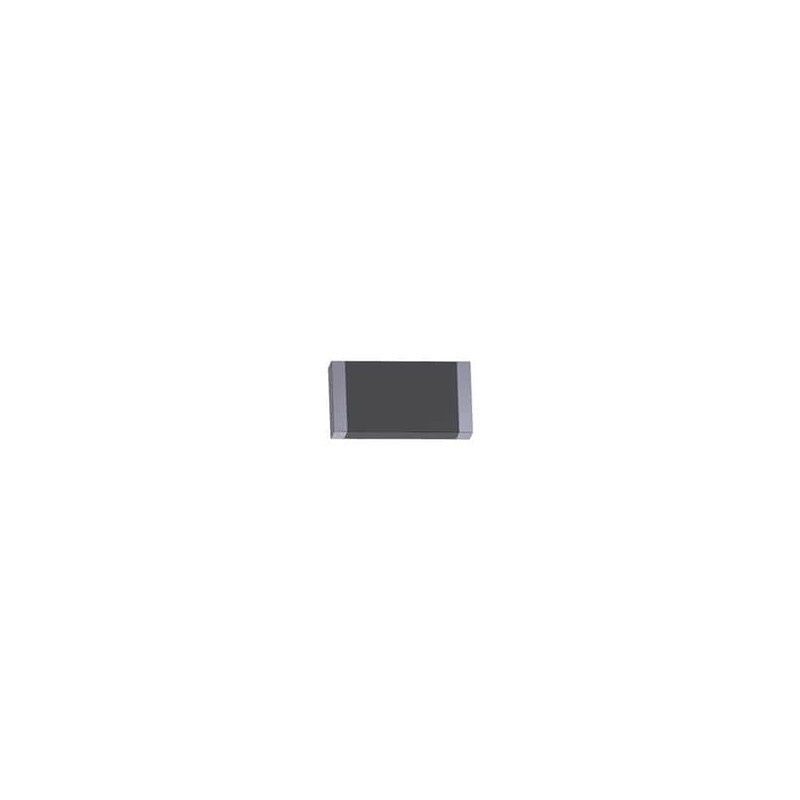

1 pcs : ACAR0301-SW2 - Antennas Low Profile Dual Band WiFi Chip Ant
    • 1 pcs : ACAR0301-SW2 - Antennas Low Profile Dual Band WiFi Chip Ant

    1 pcs : ACAR0301-SW2 - Antennas Low Profile Dual Band WiFi Chip Ant

    electronicparts-UK/M/815-ACAR0301-SW2
    ABRACON
    £10.84
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Chip Antennas Abracon Chip Antennas are ceramic-type antennas using Low-Temperature Co-fired Ceramic (LTCC) technology. These antennas are omnidirectional and exhibit linear polarization. The chip antennas operate at -40°C to +85°C and come in a low-profile compact package. These chip antennas feature a wide operating frequency range, high gain, wide bandwidth, and low return loss in a small form factor. The Abracon Chip Antennas readily apply to IoT, Wi-FI, and ISM applications.
    Product Details
    ABRACON
    electronicparts-UK/M/815-ACAR0301-SW2
    ACAR0301-SW2
    10 Items

    Data sheet

    Manufacturer
    ABRACON
    Impedance
    50 Ohms
    Width
    1.6 mm
    Height
    0.55 mm
    Application
    AR/VR, Drones, Broadband Connectivity, Weareable
    Length
    3.05 mm
    IP rating
    -
    Polarisation
    Linear
    Series
    ACAR
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    PCB Mount
    Type
    Passive Antenna
    Product Type
    2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee
    Cable Type
    -
    Maximum Frequency
    5.825 GHz
    Minimum Frequency
    2.4 GHz
    Termination Style
    SMD/SMT
    Gain
    1 dBi, 2.5 dBi
    Product Category
    Antennas
    Style
    Ceramic
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    ABRACON
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    5000
    Subcategory
    Antennas
    Unit Weight
    488.500 mg
    VSWR
    2.1, 2.1
    Antenna Connector Type
    -
    Protocol - WiFi - 802.11
    WiFi
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth
    Protocol - Sub GHz
    ISM
    Number of Bands
    2 Band
    Centre Frequency
    2.4 GHz, 5.5 GHz
    Mechanical Style
    Chip
