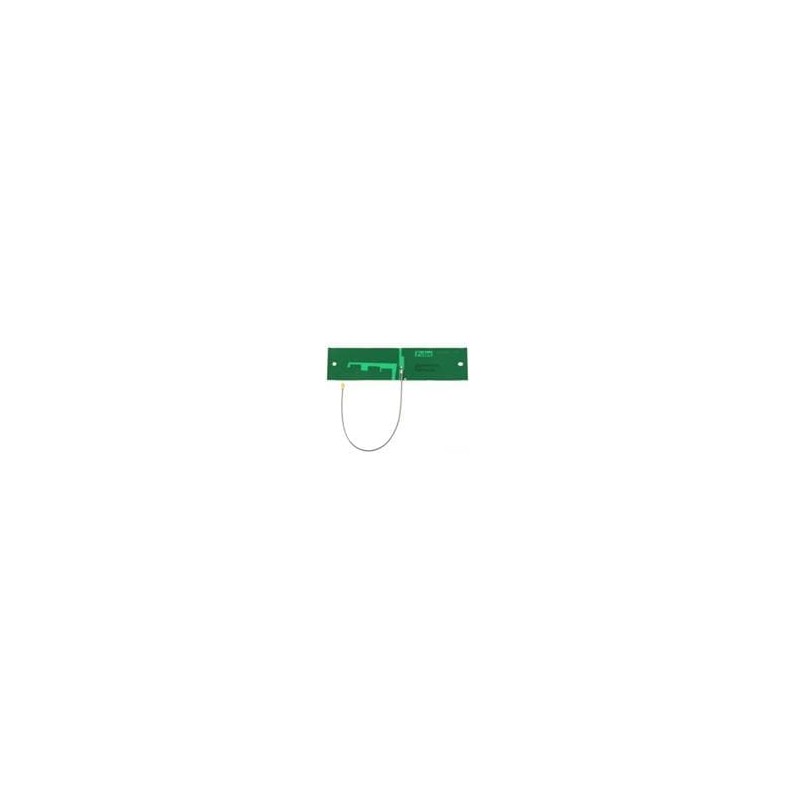

    1 pcs : W3554G0457 - Antennas Monopole W/457mm Cbl 698-6000MHz
    • 1 pcs : W3554G0457 - Antennas Monopole W/457mm Cbl 698-6000MHz

    1 pcs : W3554G0457 - Antennas Monopole W/457mm Cbl 698-6000MHz

    electronicparts-UK/M/673-W3554G0457
    £18.27
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    W3554 High-Efficiency Wideband LTE Dipole Antennas Pulse Electronics W3554 High-Efficiency Wideband LTE Dipole Antennas offer a covered frequency range of 698MHz to 6000MHz. The W3554 measures 30mm x 120mm x 0.2mm and weighs only 1.5g. These dipole antennas are constructed from lead-free materials and are lead-free soldering compatible. Multiple cable lengths and connector options are available. Pulse Electronics W3554 High-Efficiency Wideband LTE Dipole Antennas offer 50Ω impedance, 5W power withstanding, and an operating temperature range of -40°C to +85°C. The W3554 is compatible with Hirose coaxial cable connectors U.FL and I-PEX MHF.
    Product Details
    Pulse Electronics
    electronicparts-UK/M/673-W3554G0457
    W3554G0457
    10 Items

    Data sheet

    Manufacturer
    PULSE
    Impedance
    50 Ohms
    Width
    30 mm
    Height
    0.2 mm
    Cable length
    457 mm
    Application
    Cellular Applications, Satellite, Wireless Applications
    Length
    120 mm
    Polarisation
    Linear
    Series
    W3554
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    Adhesive Mount
    Type
    Passive Antenna
    Power Rating
    5 W
    Product Type
    Multiprotocol Antennas
    Cable Type
    457 mm RF1.13
    Maximum Frequency
    2.69 GHz
    Minimum Frequency
    698 MHz
    Termination Style
    Connector
    Gain
    1.9 dBi, 2.5 dBi, 3.2 dBi, 3.3 dBi, 3.5 dBi
    Product Category
    Antennas
    Style
    T-Bar
    Packaging
    Bulk
    RoHS
    Details
    Brand
    Pulse Electronics
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    10
    Subcategory
    Antennas
    Antenna Connector Type
    SMA Male
    Protocol - WiFi - 802.11
    802.11, LoRaWAN, SigFox, WiFi, WLAN
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth, BLE
    Protocol - Sub GHz
    IoT, ISM, RFID, U-NII
    Number of Bands
    5 Band
    Centre Frequency
    850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2400 MHz,3550 MHz, 5600 MHz
    Protocol - Cellular, NBIoT, LTE
    2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
    Protocol - ANT, Thread, Zigbee - 802.15.4
    802.15.4 (ANT, Thread, Zigbee)
    Mechanical Style
    PCB Trace
