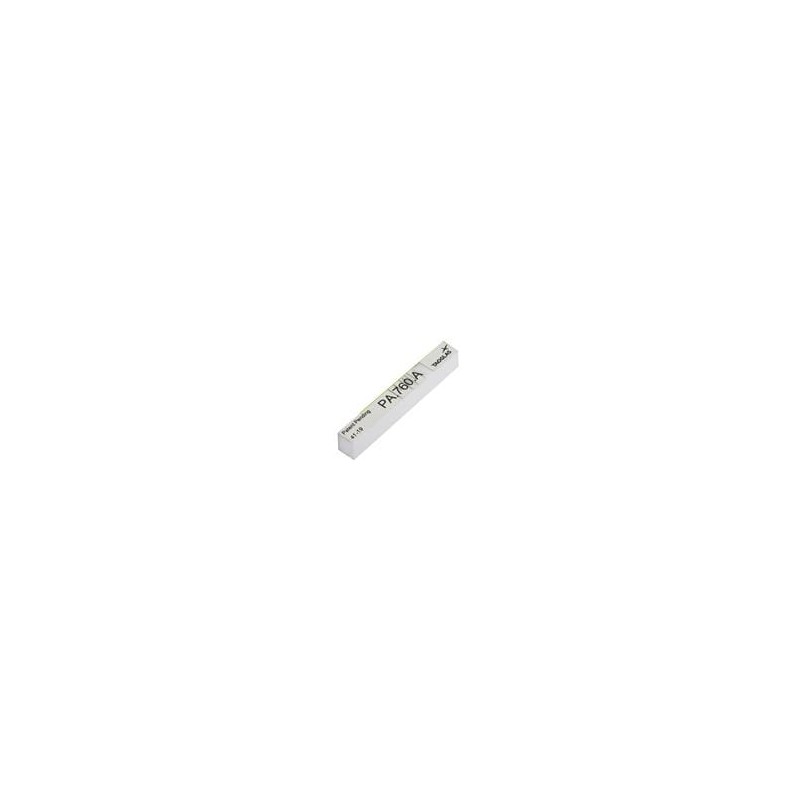

    1 pcs : PA.760.A - Antennas PA.760.A WarriorX Wideband (600-6000MHz) 5G/4G SMD Ceramic Antenna
    • 1 pcs : PA.760.A - Antennas PA.760.A WarriorX Wideband (600-6000MHz) 5G/4G SMD Ceramic Antenna

    1 pcs : PA.760.A - Antennas PA.760.A WarriorX Wideband (600-6000MHz) 5G/4G SMD Ceramic Antenna

    Allparts-UK/M/960-PA.760.A
    Taoglas
    £45.00
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    WarriorX PA.760.A 5G / 4G SMD Antennas Taoglas WarriorX PA.760.A 5G / 4G Surface-Mount Antennas are wideband (600MHz to 6000MHz) ceramic antennas designed to cover the 5G NR bands for worldwide deployment. Taoglas WarriorX PA.760.A also handles worldwide 4G bands. When mounted on a device's main PCB, these antennas deliver high efficiencies in a small footprint across all bands. PA.760 is also backward compatible with global 3G/2G applications.
    Product Details
    Taoglas
    Allparts-UK/M/960-PA.760.A
    PA.760.A
    10 Items

    Data sheet

    Manufacturer
    Taoglas
    Impedance
    50 Ohms
    Width
    5 mm
    Height
    5 mm
    Application
    Autonomous Vehicles, Industrial IoT, Robotics, Transportation
    Length
    40 mm
    Polarisation
    Linear
    Series
    GuardianX
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    PCB Mount
    Type
    Passive Antenna
    Product Type
    Cellular Antennas - GSM, LTE, 2G/3G/4G/5G
    Cable Type
    -
    Maximum Frequency
    5.925 GHz
    Minimum Frequency
    617 MHz
    Gain
    - 0.7 dBi, 0.5 dBi, 1 dBi, - 0.5 dBi, 3.4 dBi, 2.9 dBi, 4.3 dBi, 3 dBi
    Product Category
    Antennas
    Style
    Ceramic
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Taoglas
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    450
    Subcategory
    Antennas
    Unit Weight
    3 g
    REACH - SVHC
    Details
    Antenna Connector Type
    -
    Protocol - WiFi - 802.11
    802.11, WiFi, WLAN
    Number of Bands
    8 Band
    Centre Frequency
    657 MHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1474 Mhz, 1800 MHz, 1900 MHz, 2100 MHz, 2500 MHz, 3500 MHz, 3500 MHz, 5200 MHz, 5800 MHz
    Protocol - Cellular, NBIoT, LTE
    2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA, EDGE, GPRS
    Mechanical Style
    Chip
    Electrical Type
    PIFA
    Ground Plane Size
    120 mm x 45 mm
