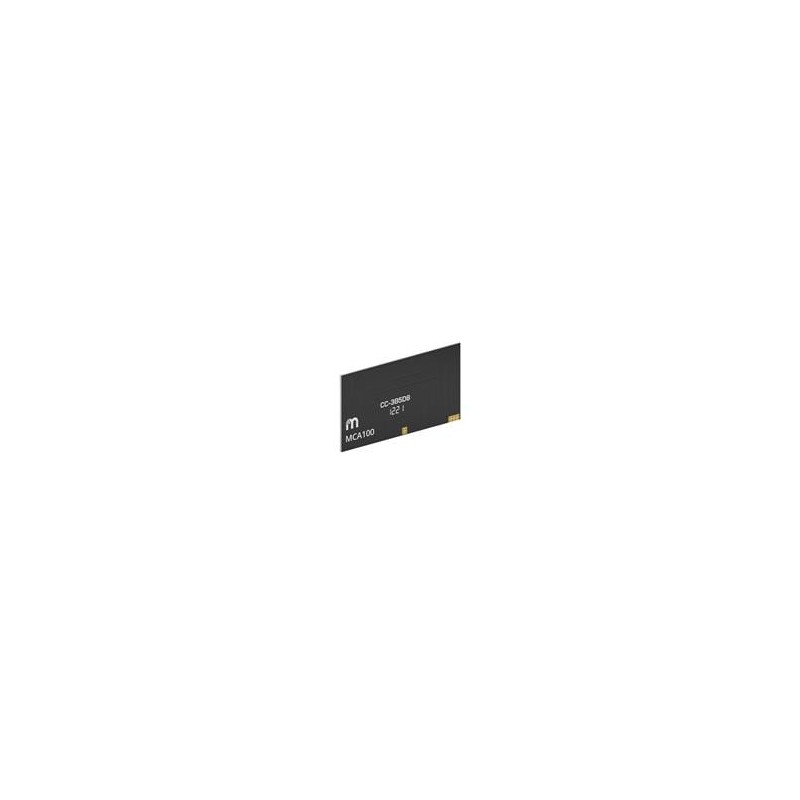

    1 pcs : MCA100 - Antennas Ultra Wideband Antenna 617 MHz - 7.125 GHz
    • 1 pcs : MCA100 - Antennas Ultra Wideband Antenna 617 MHz - 7.125 GHz

    1 pcs : MCA100 - Antennas Ultra Wideband Antenna 617 MHz - 7.125 GHz

    Allparts-UK/M/599-MCA100
    Mobix Labs
    £20.68
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    MCA100 Ultra-Wideband SMT Antenna Mobix Labs MCA100 Ultra-Wideband SMT Antenna is for 5GNR-FR1, Wi-Fi 6E, Bluetooth, LTE, 5G, and ZigBee applications. The antennas have a wide operating frequency range that starts at 617MHz and includes the new Wi-Fi band up to 7.125 GHz. The MCA100 has an omnidirectional radiation pattern that allows maximum coverage. The MCA100 is an effective surface mount solution for multiband devices. The high total efficiency of the MCA100 extends battery life as it utilizes less power to cover the same distance. Additionally, the MCA100 eliminates the need for multiple antennas by covering all standards within its wide frequency range. With its small form factor and low profile, the MCA100 is the ideal cost-efficient chip antenna for the design of a large selection of end products in all frequency bands from 617MHz to 7.125GHz.
    Product Details
    Mobix Labs
    Allparts-UK/M/599-MCA100
    MCA100
    10 Items

    Data sheet

    Manufacturer
    Mobix Labs
    Impedance
    50 Ohms
    Width
    25.5 mm
    Height
    0.852 mm
    Application
    Access Points, Routers, Gateways, Set Top Box, Multi-band Equipment, Appliances, Wireless Devices
    Length
    49 mm
    IP rating
    IP68
    Bandwidth
    6.508 GHz
    Frequency
    617 MHz to 7.125 GHz
    Series
    MCA
    Maximum Operating Temperature
    + 75 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    PCB Mount
    Type
    Passive Antenna
    Power Rating
    2 W
    Product Type
    Multiprotocol Antennas
    Cable Type
    -
    Maximum Frequency
    7.125 GHz
    Minimum Frequency
    617 MHz
    Termination Style
    SMD/SMT
    Gain
    0.03 dBi to 5.3 dBi
    Frequency Range
    617 MHz to 7.125 GHz
    Product Category
    Antennas
    Style
    Ceramic
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Mobix Labs
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    300
    Subcategory
    Antennas
    VSWR
    3
    Antenna Connector Type
    -
    Protocol - WiFi - 802.11
    ISM, ANT, WiFi, WiFi 802.11, WLAN, WiFi 6, WiFi 6E, WiMAX, WHDMI
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth, BLE
    Protocol - Sub GHz
    ISM
    Protocol - GPS, GLONASS
    BEIDOU, Galileo, GLONASS, GNSS, GPS
    Number of Bands
    1 Band
    Centre Frequency
    617 MHz, 915 MHz, 2.45 GHz, 5.5 GHz, 6 GHz, 7 GHz
    Protocol - Cellular, NBIoT, LTE
    2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DSRC
    Protocol - ANT, Thread, Zigbee - 802.15.4
    802.15.4 (ANT, Thread, Zigbee)
    Mechanical Style
    Chip
