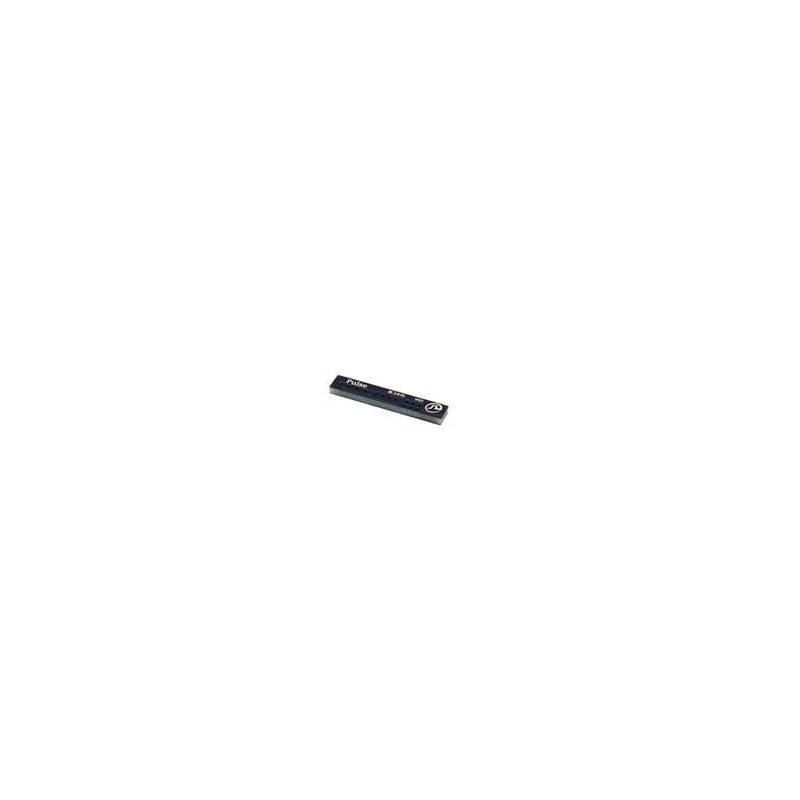

    1 pcs : W3415 - Antennas SMT Linear 2W 50Ohms 617-6000MHz
    • 1 pcs : W3415 - Antennas SMT Linear 2W 50Ohms 617-6000MHz

    1 pcs : W3415 - Antennas SMT Linear 2W 50Ohms 617-6000MHz

    electronicparts-UK/M/673-W3415
    £18.92
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Group I/O Products YAGEO Group (YAGEO, KEMET, Pulse) I/O Products include antennas, capacitors, chokes, filters, transformers, connectors, sensors, and inductors. In a digital system, the inputs and outputs are vital in their communication with other systems and devices. These are the arms and legs of the system that give it the ability to do work. They typically consist of USB connections, internal and external antennas, integrated RJ45 modules, and environmental sensors. Each of these connectors typically requires some type of controller, and in some cases, signal line chokes to filter out various noises. The controllers themselves contain RF capacitors and inductors that filter out unwanted noise and interfering signals. The block diagram below is an example of a network of input and output connectors and devices offered by YAGEO Group.
    Product Details
    Pulse Electronics
    electronicparts-UK/M/673-W3415
    W3415
    10 Items

    Data sheet

    Manufacturer
    PULSE
    Impedance
    50 Ohms
    Width
    7 mm
    Height
    3 mm
    Application
    Broadband Antenna
    Length
    40 mm
    Polarisation
    Linear
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    PCB Mount
    Type
    Passive Antenna
    Power Rating
    2 W
    Product Type
    Multiprotocol Antennas
    Cable Type
    -
    Maximum Frequency
    6 GHz
    Minimum Frequency
    617 MHz
    Termination Style
    SMD/SMT
    Gain
    - 1 dBi to 7 dBi
    Product Category
    Antennas
    Style
    Composite
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Pulse Electronics
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    1000
    Subcategory
    Antennas
    Antenna Connector Type
    -
    Protocol - WiFi - 802.11
    802.11, LoRaWAN, SigFox, WiFi, WLAN, WiMAX
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth, BLE
    Protocol - Sub GHz
    IoT, ISM, RFID, U-NII
    Protocol - GPS, GLONASS
    GLONASS, GPS
    Number of Bands
    2 Band
    Centre Frequency
    780 MHz, 868 MHz, 915 MHz, 1575 MHz, 1602 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2450 MHz, 3750 MHz, 5000 MHz, 5500 MHz
    Protocol - Cellular, NBIoT, LTE
    2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA
    Protocol - ANT, Thread, Zigbee - 802.15.4
    802.15.4 (ANT, Thread, Zigbee)
    Mechanical Style
    PCB Trace
