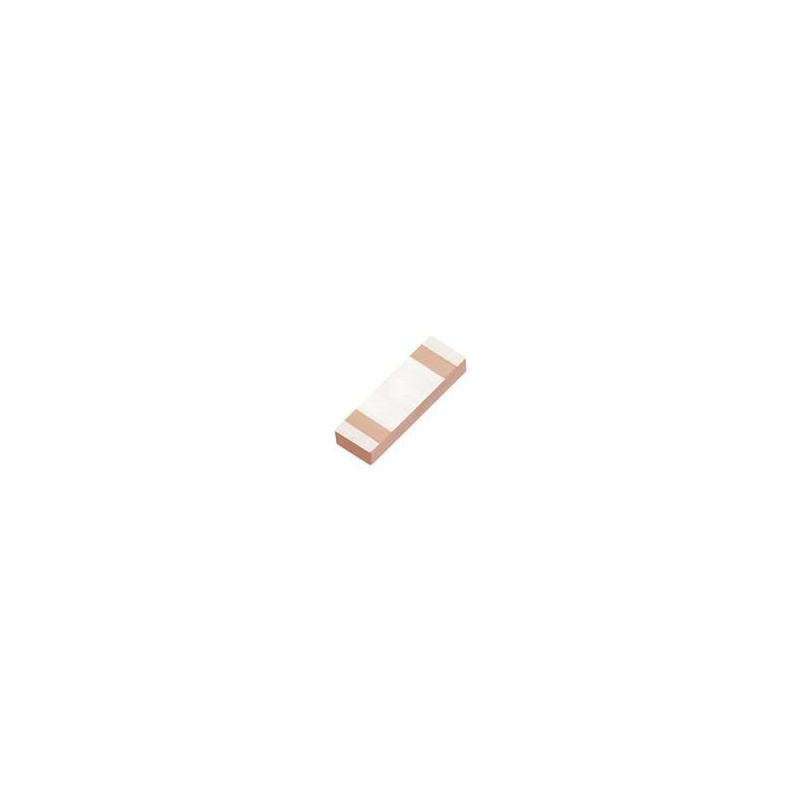

    1 pcs : GGBLA.125.A - Antennas GGBLA.125.A - GPS L1/L2/L5/L6, GLONASS, BeiDou Ceramic Loop Antenna
    • 1 pcs : GGBLA.125.A - Antennas GGBLA.125.A - GPS L1/L2/L5/L6, GLONASS, BeiDou Ceramic Loop Antenna

    1 pcs : GGBLA.125.A - Antennas GGBLA.125.A - GPS L1/L2/L5/L6, GLONASS, BeiDou Ceramic Loop Antenna

    Allparts-UK/M/960-GGBLA.125.A
    Taoglas
    £17.63
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Ceramic GGBLA.125.A Antenna Taoglas Ceramic GGBLA.125.A Antenna is an embedded ceramic miniature loop antenna that is designed for GPS L1, L2, L5, and L6 applications. The ceramic antenna comes with all GNSS requirements that include GLONASS (L1PT, L1CR, and L5R), Galileo (E1, E2, E5a, and E6), BeDou B1, IRNSS, and QZSS frequencies. Taoglas Ceramic GGBLA.125.A Antenna features a wide bandwidth that maintains high efficiency and reception stability on all GNSS bands from 1164MHz to 1602MHz. Typical applications include navigation and RTK systems, autonomous vehicles, IoT devices, transportation, marine, agriculture, UAVs, robotics, and location-based applications.
    Product Details
    Taoglas
    Allparts-UK/M/960-GGBLA.125.A
    GGBLA.125.A
    10 Items

    Data sheet

    Manufacturer
    Taoglas
    Impedance
    50 Ohms
    Width
    3.2 mm
    Height
    1.5 mm
    Application
    Navigation, RTK Systems, Autonomous Vehicles, IoT Devices, Transportation, Marine, Agriculture, UAVs, Robotics
    Length
    10 mm
    Polarisation
    Linear
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    PCB Mount
    Type
    Passive Antenna
    Product Type
    GNSS Antennas - GPS, GLONASS, Galileo, Beidou
    Cable Type
    -
    Maximum Frequency
    1.602 GHz
    Minimum Frequency
    1.17645 GHz
    Gain
    3.6 dBi, 3.3 dBi, 3.3 dBi, 2.6 dBi, 2.8 dBi, 3 dBi
    Product Category
    Antennas
    Style
    Chip
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Taoglas
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    1000
    Subcategory
    Antennas
    Unit Weight
    2.861 g
    REACH - SVHC
    Details
    Antenna Connector Type
    -
    Protocol - Sub GHz
    -
    Protocol - GPS, GLONASS
    BEIDOU, Galileo, GLONASS, GPS
    Number of Bands
    6 Band
    Centre Frequency
    1.2276 GHz, 1.2788 GHz, 1.561 GHz, 1.57542 GHz
    Mechanical Style
    Loop
    Ground Plane Size
    80 mm x 40 mm
