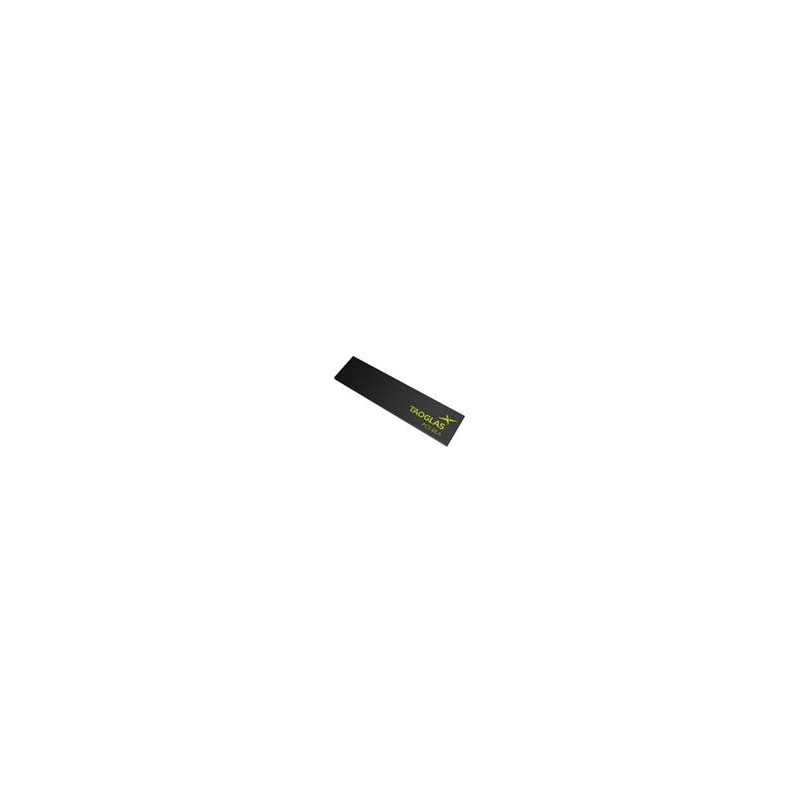

    1 pcs : PCS.68.A - Antennas PCS.68.A Wideband 5G/4G PCB SMD Antenna
    • 1 pcs : PCS.68.A - Antennas PCS.68.A Wideband 5G/4G PCB SMD Antenna

    1 pcs : PCS.68.A - Antennas PCS.68.A Wideband 5G/4G PCB SMD Antenna

    Allparts-UK/M/960-PCS.68.A
    Taoglas
    £17.03
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    PCS.68.A Reach Wideband 5G/4G PCB SMD Antenna Taoglas PCS.68.A Reach Low Profile Wideband 5G/4G PCB SMD Antenna is designed to cover all 5G and 4G bands, including all sub-6GHz deployments across the 600MHz to 6000MHz spectrum. The antenna has a small footprint of 42mm x 10mm and a low-profile size of 1.5mm in height, which allows for installation where height is at a premium. The patent-pending design uses printed circuit board material and innovative design techniques to deliver the highest efficiencies at all bands when mounted on the device’s main PCB. The PCS.68.A is suitable for lower-cost 5G/4G applications, including Internet of Things projects requiring wide bandwidth.
    Product Details
    Taoglas
    Allparts-UK/M/960-PCS.68.A
    PCS.68.A
    10 Items

    Data sheet

    Manufacturer
    Taoglas
    Impedance
    50 Ohms
    Width
    10 mm
    Height
    1.5 mm
    Application
    Autonomous Vehicles, Smart Metering, Connected Health, Weareables, Payment Terminals
    Length
    42 mm
    Polarisation
    Linear
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    PCB Mount
    Type
    Passive Antenna
    Product Type
    Cellular Antennas - GSM, LTE, 2G/3G/4G/5G
    Cable Type
    -
    Maximum Frequency
    6 GHz
    Minimum Frequency
    600 MHz
    Termination Style
    SMD/SMT
    Gain
    - 1 dBi, - 2 dBi, 3.8 dBi, 2 dBi, 4 dBi, 4.5 dBi, 4 dBi
    Product Category
    Antennas
    Style
    Chip
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Taoglas
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    500
    Subcategory
    Antennas
    Unit Weight
    2 g
    REACH - SVHC
    Details
    VSWR
    3.51
    Antenna Connector Type
    -
    Number of Bands
    7 Band
    Centre Frequency
    657 MHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1474 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2450 MHz, 2600 MHz, 3400 Mhz, 5200 MHz, 5500 MHz, 5800 MHz
    Protocol - Cellular, NBIoT, LTE
    2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, UMTS, GPRS, WCDMA, HSPA
    Mechanical Style
    Chip
    Electrical Type
    Embedded
    Ground Plane Size
    130 mm x 42 mm
