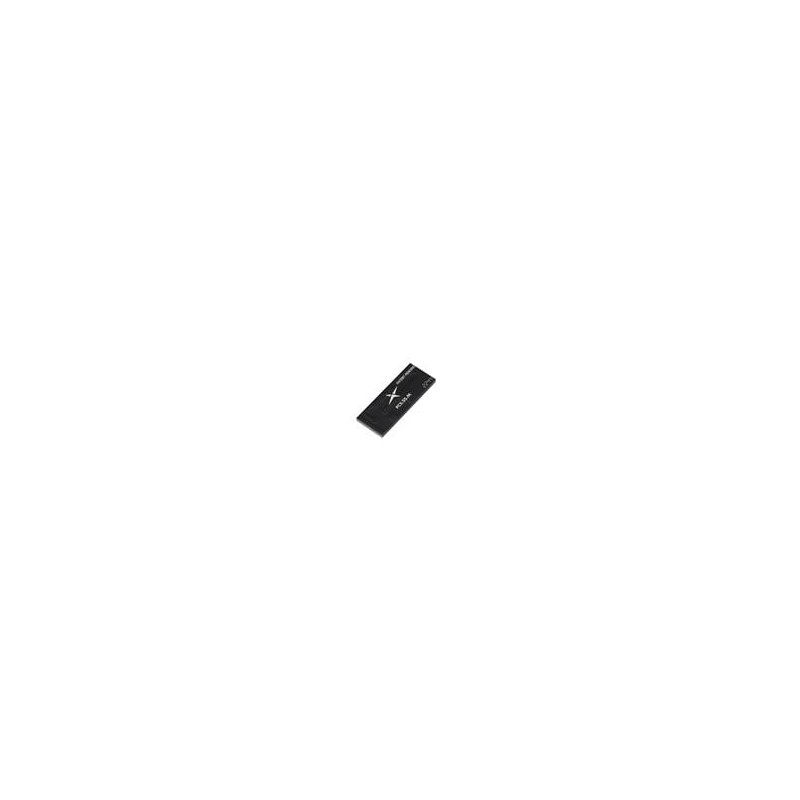

    1 pcs : PCS.55.M - Antennas LTE FR4 ANT
    • 1 pcs : PCS.55.M - Antennas LTE FR4 ANT

    1 pcs : PCS.55.M - Antennas LTE FR4 ANT

    Allparts-UK/M/960-PCS.55.M
    Taoglas
    £12.10
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    PCS.55.M Small FR4 Wideband 4G LTE Antennas Taoglas PCS.55.M Small FR4 Wideband 4G LTE Antennas are compact cellular antennas designed for IoT devices. The antennas provide 5G/4G/LTE wideband coverage, including the 600MHz to 700Mhz bands. Taoglas PCS.55.M Small FR4 Wideband 4G LTE Antennas feature easy integration into standard SMD technologies and matching circuits for each deployment: North America (NA), European Union (EMEA), and World Wide (WW). The antennas are made of FR4 material and are RoHS/REACH compliant. The PCS.55.M antennas are ideal for handheld IoT devices, handsets, tablets, and compact asset-tracking applications.
    Product Details
    Taoglas
    Allparts-UK/M/960-PCS.55.M
    PCS.55.M
    10 Items

    Data sheet

    Manufacturer
    Taoglas
    Impedance
    50 Ohms
    Width
    10 mm
    Height
    1.6 mm
    Application
    Compact Asset Trackers, Handsets, Handheld IoT Devices, Tablets
    Length
    27 mm
    Polarisation
    Linear
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Type
    Small OTS LTE Dielectric Antenna
    Power Rating
    2 W
    Product Type
    Cellular Antennas - GSM, LTE, 2G/3G/4G/5G
    Maximum Frequency
    2.69 GHz
    Minimum Frequency
    617 MHz
    Termination Style
    Solder
    Gain
    - 3.3 dBi, - 1.8 dBi, - 1 dBi, - 0.3 dBi, 0 dBi, 0.2 dBi, 0.4 dBi, 1.6 dBi, 3.7 dBi
    Product Category
    Antennas
    Style
    Rectangular
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Taoglas
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    1000
    Subcategory
    Antennas
    Protocol - GPS, GLONASS
    GPS, GLONASS, Galileo, BeiDou
    Number of Bands
    9 Band
    Centre Frequency
    657.5 MHz, 722 MHz, 773 MHz, 840 MHz, 920 MHz, 1.472 GHz, 1.581 GHz, 1.932 GHz, 2.595 GHz
    Protocol - Cellular, NBIoT, LTE
    Cellular, LTE, 5G/4G
    Mechanical Style
    Chip
    Electrical Type
    Chip
    Ground Plane Size
    Linear
