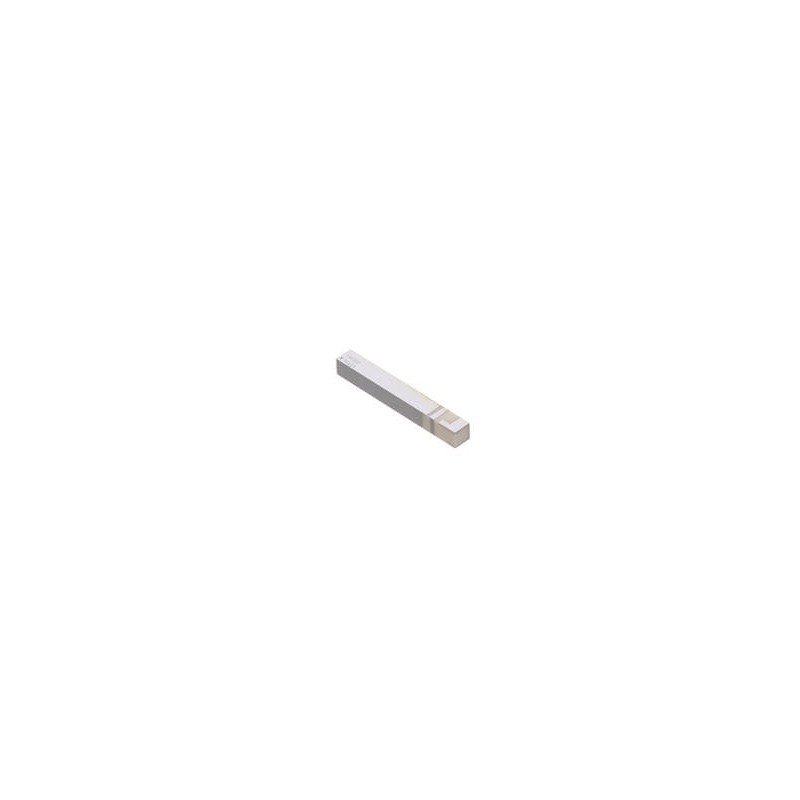

    1 pcs : 146200-0001 - Antennas Full LTE Antenna
    • 1 pcs : 146200-0001 - Antennas Full LTE Antenna

    1 pcs : 146200-0001 - Antennas Full LTE Antenna

    electronicparts-UK/M/538-146200-0001
    MOLEX
    £11.20
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Vertical Farming Molex Technology in LED lighting is spurring innovative approaches to farming, allowing crops to be grown without direct sunlight in self-contained, environment-controlled, and monitored buildings, also known as vertical farming. Horticulture-specific wavelength LEDs provide the necessary light but are dependent on the most innovative and reliable interconnect products. Molex is a recognized leader in providing sealed and unsealed interconnect solutions, wire and cable assemblies, and thermal management expertise for a range of lighting segments and offers vertical farmers the needed simplicity, flexibility, and innovation.
    Product Details
    MOLEX
    electronicparts-UK/M/538-146200-0001
    146200-0001
    10 Items

    Data sheet

    Manufacturer
    MOLEX
    Impedance
    50 Ohms
    Width
    5 mm
    Height
    5 mm
    Length
    40 mm
    Polarisation
    Linear
    Series
    146200
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 30 C
    Mounting Style
    PCB Mount
    Type
    Passive Antenna
    Power Rating
    2 W
    Product Type
    Cellular Antennas - GSM, LTE, 2G/3G/4G/5G
    Technology
    Cellular
    Cable Type
    -
    Maximum Frequency
    2.7 GHz
    Minimum Frequency
    698 MHz
    Termination Style
    SMD/SMT
    Gain
    1.1 dBi, 4.5 dBi
    Product Category
    Antennas
    Style
    Ceramic
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Molex
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    1000
    Subcategory
    Antennas
    Unit Weight
    3.812 g
    Antenna Connector Type
    -
    Protocol - WiFi - 802.11
    802.11, WiFi, WLAN
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth, BLE
    Protocol - Sub GHz
    IoT, ISM
    Number of Bands
    2 Band
    Centre Frequency
    748 MHz, 824 MHz, 815 MHz, 829 MHz, 898 MHz, 915 MHz, 928 MHz, 1850 MHz, 2170 MHz, 2450 MHz, 2690 MHz
    Protocol - Cellular, NBIoT, LTE
    Cellular (NBIoT, LTE), GSM, UMTS
    Protocol - ANT, Thread, Zigbee - 802.15.4
    802.15.4 (ANT, Thread, Zigbee), 802.16
    Mechanical Style
    Chip
