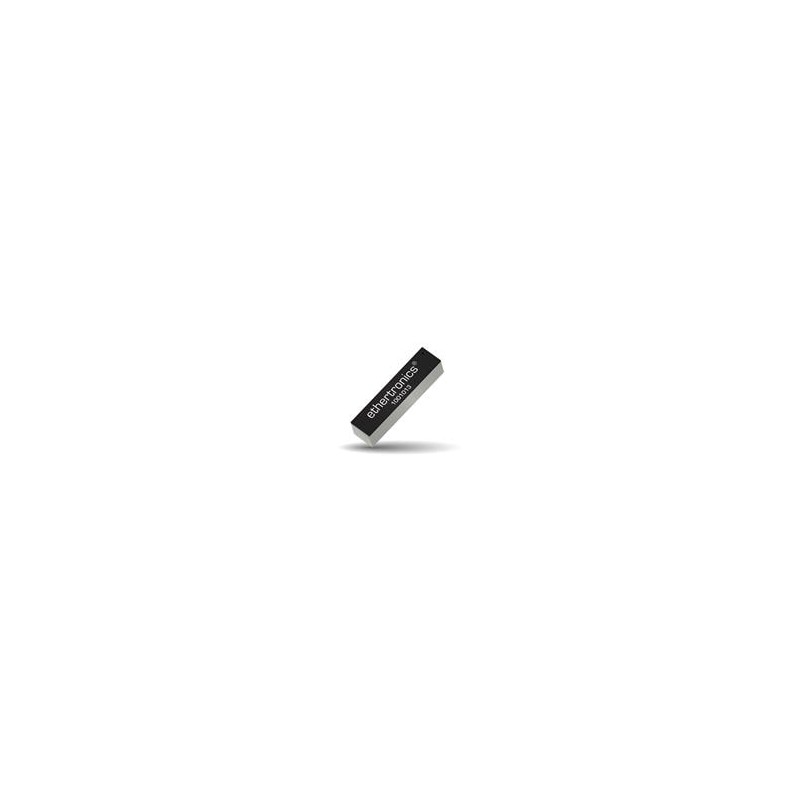

    1 pcs : 1001013 - Antennas On/Off Ground WiFi/BT PCB
    • 1 pcs : 1001013 - Antennas On/Off Ground WiFi/BT PCB

    1 pcs : 1001013 - Antennas On/Off Ground WiFi/BT PCB

    electronicparts-UK/M/581-1001013
    £11.43
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    WLAN/BLUETOOTH/ZigBee Tunable Embedded Antennas KYOCERA AVX WLAN / BLUETOOTH® / ZigBee® Tunable Embedded PCB Antennas offer high functionality and performance for smaller and thinner designs. The 2.4GHz / 5GHz dual-band antennas utilize patented isolated magnetic dipole (IMD) technology to deliver a unique size and performance combination. This technology provides superior RF field containment, resulting in less interaction with surrounding components. These antennas have unique features, enabling limited-range RF tuning by leaving P1 - P6 and C1 - C2 connected via a solder bridge or disconnected with a cut to the trace. KYOCERA AVX Tunable Embedded PCB Antennas are ideal for smart homes, digital signs, automotive, Internet of Things (IoT), and other applications.
    Product Details
    KYOCERA AVX
    electronicparts-UK/M/581-1001013
    1001013
    10 Items

    Data sheet

    Manufacturer
    KYOCERA AVX
    Impedance
    50 Ohms
    Width
    3.2 mm
    Height
    3.3 mm
    Application
    Embedded Design, Cellular, Headsets, Tablets, Gateway, Access Point, Handheld, Telematics, Tracking, Healthcare, M2M, Smart Grid, OBD-II
    Length
    15 mm
    IP rating
    -
    Polarisation
    Linear
    Series
    1001013
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    PCB Mount
    Type
    Passive Antenna
    Power Rating
    2 W
    Product Type
    2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee
    Technology
    WLAN b/g/n
    Cable Type
    -
    Maximum Frequency
    2.485 GHz
    Minimum Frequency
    2.4 GHz
    Termination Style
    SMD/SMT
    Gain
    2.6 dBi, 0.7 dBi
    Product Category
    Antennas
    Style
    Ceramic
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    KYOCERA AVX
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    2250
    Subcategory
    Antennas
    Unit Weight
    1.238 g
    VSWR
    1.31, 1.81
    Antenna Connector Type
    -
    Protocol - WiFi - 802.11
    WiFi, WLAN
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth
    Number of Bands
    1 Band
    Centre Frequency
    2.4425 GHz
    Protocol - ANT, Thread, Zigbee - 802.15.4
    802.15.4 (ANT, Thread, Zigbee)
    Mechanical Style
    Chip
