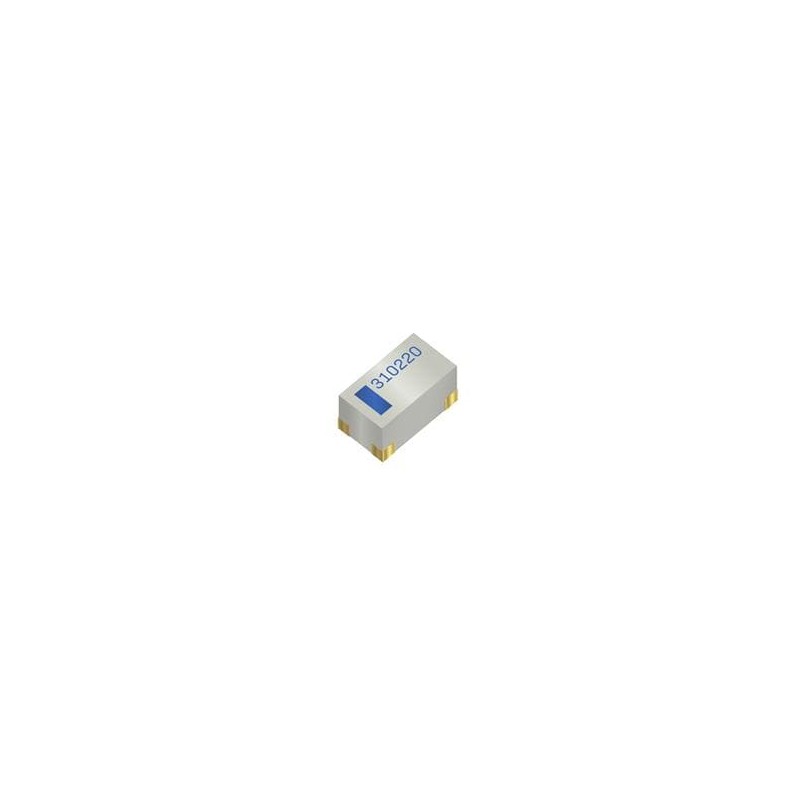

    1 pcs : M310220 - Antennas WiFi/BT Ceramic
    • 1 pcs : M310220 - Antennas WiFi/BT Ceramic

    1 pcs : M310220 - Antennas WiFi/BT Ceramic

    electronicparts-UK/M/581-M310220
    £11.13
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    WLAN/BLUETOOTH/ZigBee Tunable Embedded Antennas KYOCERA AVX WLAN / BLUETOOTH® / ZigBee® Tunable Embedded PCB Antennas offer high functionality and performance for smaller and thinner designs. The 2.4GHz / 5GHz dual-band antennas utilize patented isolated magnetic dipole (IMD) technology to deliver a unique size and performance combination. This technology provides superior RF field containment, resulting in less interaction with surrounding components. These antennas have unique features, enabling limited-range RF tuning by leaving P1 - P6 and C1 - C2 connected via a solder bridge or disconnected with a cut to the trace. KYOCERA AVX Tunable Embedded PCB Antennas are ideal for smart homes, digital signs, automotive, Internet of Things (IoT), and other applications.
    Product Details
    KYOCERA AVX
    electronicparts-UK/M/581-M310220
    M310220
    10 Items

    Data sheet

    Manufacturer
    KYOCERA AVX
    Impedance
    50 Ohms
    Width
    1.5 mm
    Height
    1.08 mm
    Application
    Embedded Design, Cellular, Headsets, Tablets, Gateway, Access Point, Handheld, Telematics, Tracking, Healthcare, M2M, Smart Grid, OBD-II
    Length
    3 mm
    IP rating
    -
    Polarisation
    Linear
    Series
    M310220
    For Use With
    M310220-01
    Mounting Style
    PCB Mount
    Type
    Passive Antenna
    Power Rating
    500 mW
    Product Type
    2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee
    Technology
    BT / ISM / WiFi / Zigbee
    Cable Type
    -
    Maximum Frequency
    2.5 GHz
    Minimum Frequency
    2.4 GHz
    Termination Style
    SMD/SMT
    Gain
    - 1.3 dBi
    Product Category
    Antennas
    Style
    Ceramic
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    KYOCERA AVX
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    1000
    Subcategory
    Antennas
    Unit Weight
    305.444 mg
    VSWR
    21
    Antenna Connector Type
    -
    Protocol - WiFi - 802.11
    WiFi, WLAN
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth
    Number of Bands
    1 Band
    Centre Frequency
    2.4 GHz
    Protocol - ANT, Thread, Zigbee - 802.15.4
    802.15.4 (ANT, Thread, Zigbee)
    Mechanical Style
    Chip
