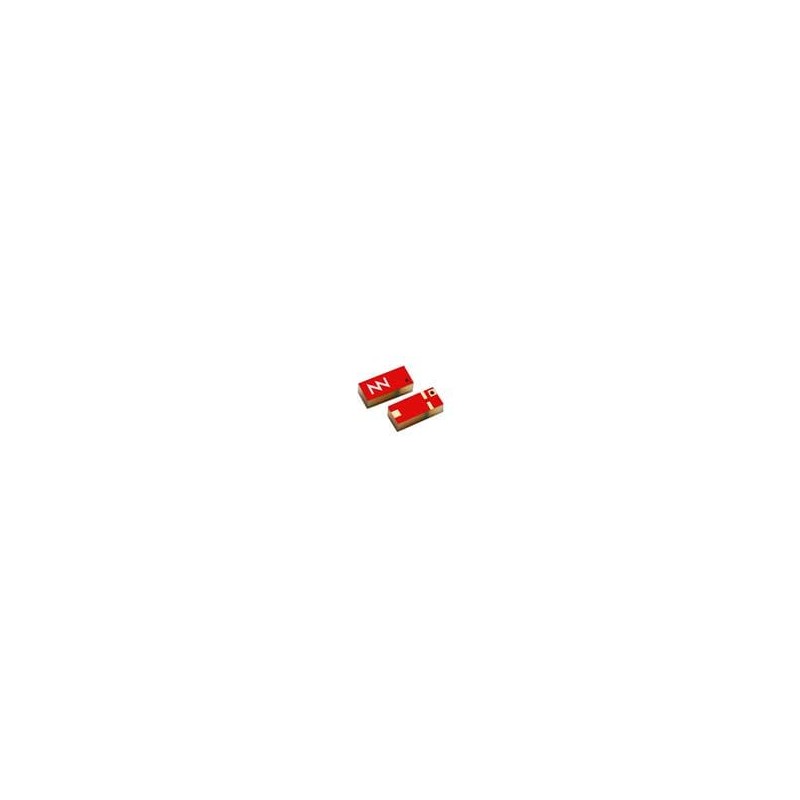

    1 pcs : NN03-320 - Antennas 1500-10600MHz
    • 1 pcs : NN03-320 - Antennas 1500-10600MHz

    1 pcs : NN03-320 - Antennas 1500-10600MHz

    electronicparts-UK/M/128-NN03-320
    Ignion
    £10.98
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Virtual Antenna™ Components Ignion Virtual Antenna™ Components is a new generation of antenna solutions based on proprietary Virtual Antenna technology. This technology mainly focuses on replacing conventional and custom antennas with antenna boosters. These boosters are offered in a range of miniature and off-the-shelf chip antenna components, which help increase production. Ignion Virtual Antenna Components are omnidirectional, multiband, and multipurpose. This feature allows them to work in a variety of wireless platforms, including GPS, 3G, 4G, 5G, Narrowband-Internet of Things (NB-IoT), LoRa®, Wi-Fi®, and Sigfox. Ideal applications include the Internet of Things (IoT), smartphones, smartwatches, sport navigators, wearables, tablets, digital cameras, and handsets.
    Product Details
    Ignion
    electronicparts-UK/M/128-NN03-320
    NN03-320
    10 Items

    Data sheet

    Manufacturer
    Ignion
    Impedance
    50 Ohms
    Width
    3 mm
    Height
    1.2 mm
    Application
    Tracking Devices, Weareables, Gaming Devices, IoT-5G Modules
    Length
    7 mm
    IP rating
    -
    Polarisation
    Linear
    Maximum Operating Temperature
    + 125 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    PCB Mount
    Type
    Passive Antenna
    Power Rating
    -
    Product Type
    Multiprotocol Antennas
    Cable Type
    -
    Maximum Frequency
    10.6 GHz
    Minimum Frequency
    1.5 GHz
    Termination Style
    SMD/SMT
    Gain
    - 1.1 dBi, - 1 dBi, - 1dBi, - 0.9 dBi, 1.6 dBi, 1.8 dBi, 1.1 dBi, 1.8 dBi, 2.6 dBi, 2.3 dBi, 3.6 dBi
    Product Category
    Antennas
    Style
    Rectangular
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Ignion
    Product
    PCB Antennas
    Factory Pack Quantity Factory Pack Quantity
    2500
    Subcategory
    Antennas
    Tradename
    mXTEND
    VSWR
    31
    Antenna Connector Type
    -
    Protocol - Bluetooth, BLE - 802.15.1
    Bluetooth
    Protocol - Sub GHz
    IoT
    Protocol - GPS, GLONASS
    GNSS
    Number of Bands
    10 Band
    Centre Frequency
    1561 MHz, 1575 Mhz, 1602 MHz, 2450 MHz,3600 MHz, 3950 MHz, 8300 MHz
    Protocol - Cellular, NBIoT, LTE
    5G, Cellular (NBIoT, LTE)
    Mechanical Style
    Chip
    Electrical Type
    Monopole
